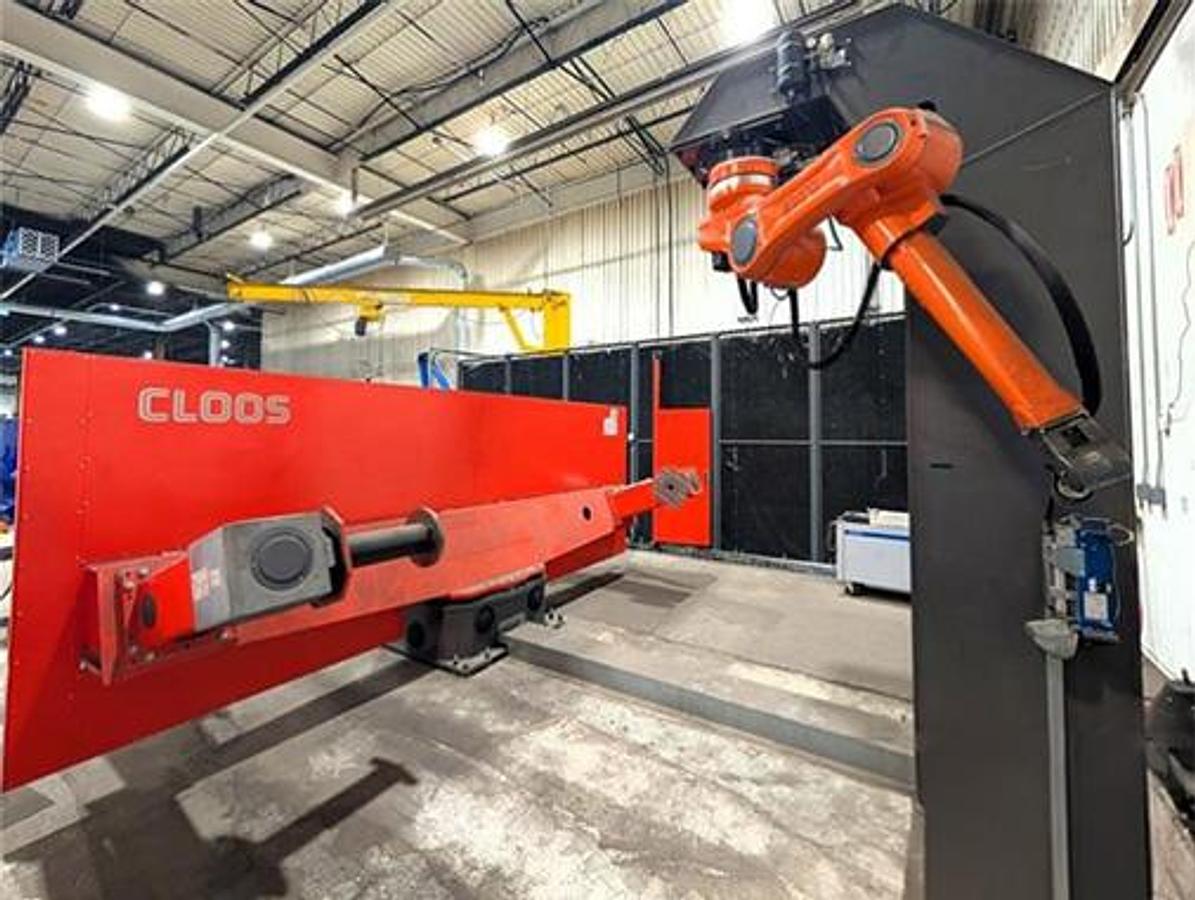

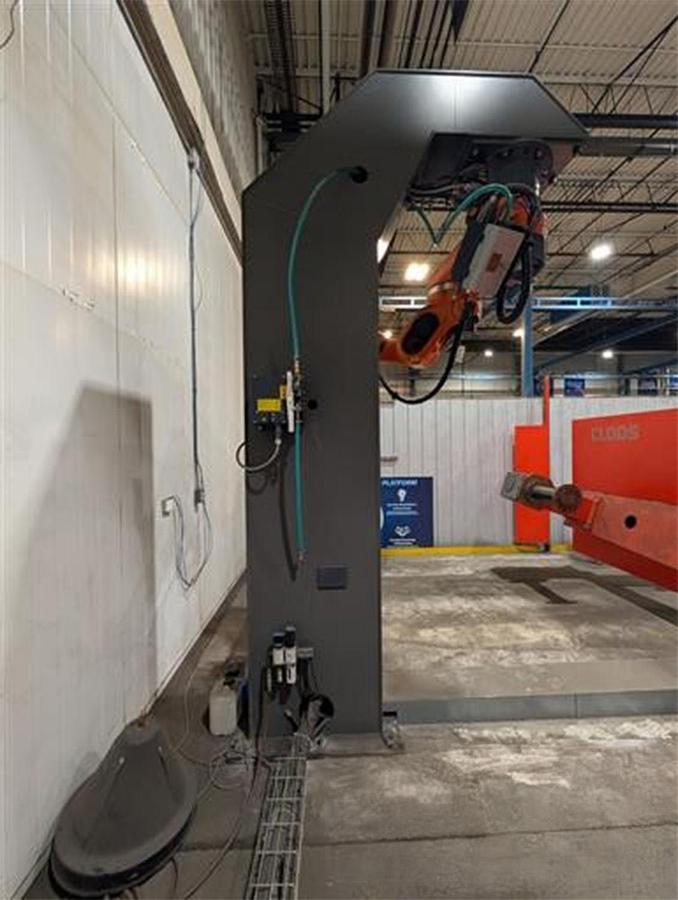

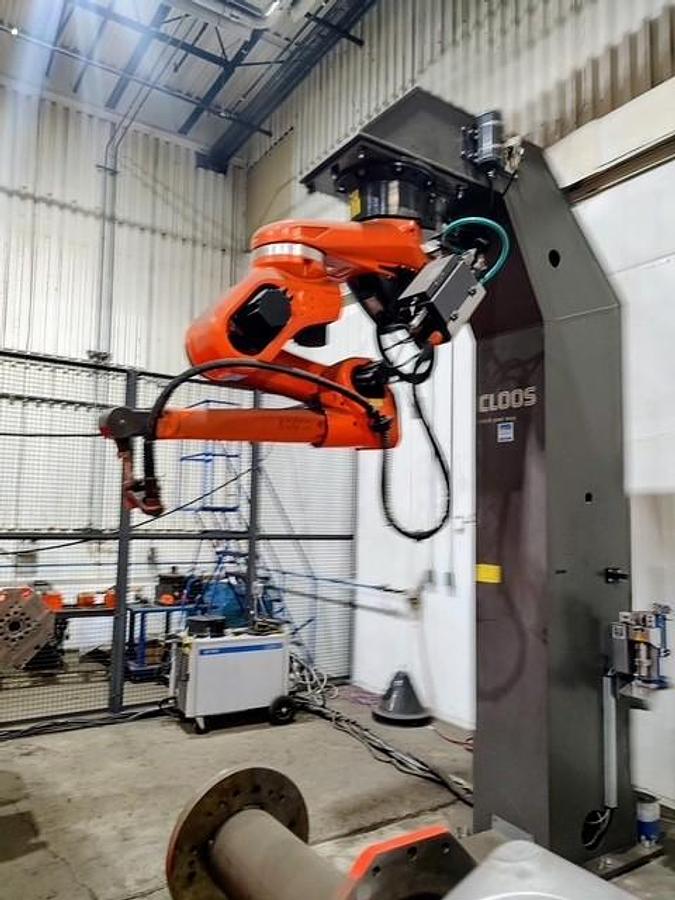

2021 Cloos CS-30 10-Axis CNC Robotic Welding Cell

2021 Cloos CS-30 10-Axis CNC Robotic Welding Cell

Contact us for price

Location:Canada

or
Call 1 704-821-7370

Description

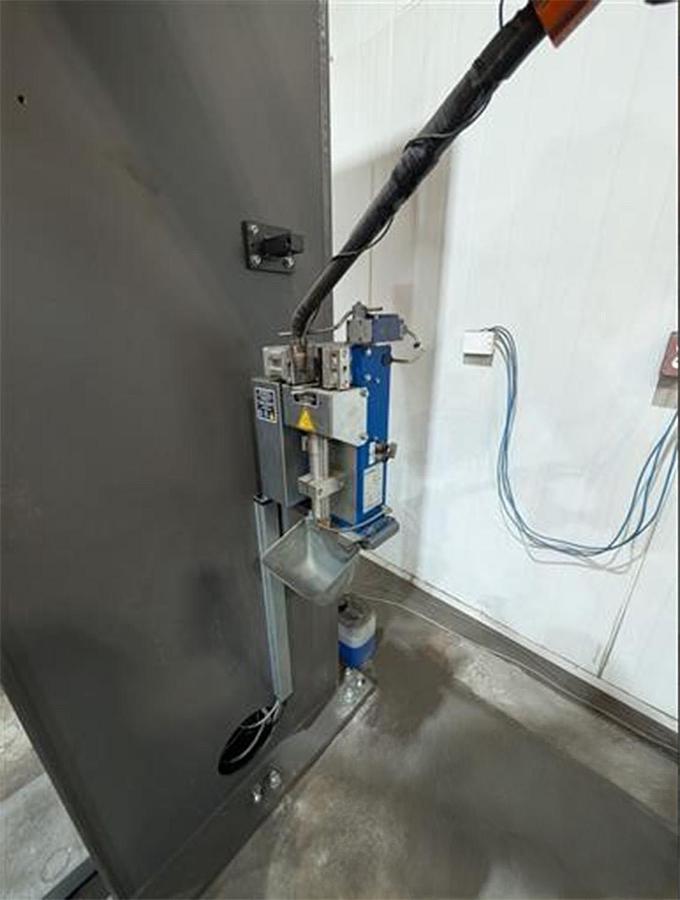

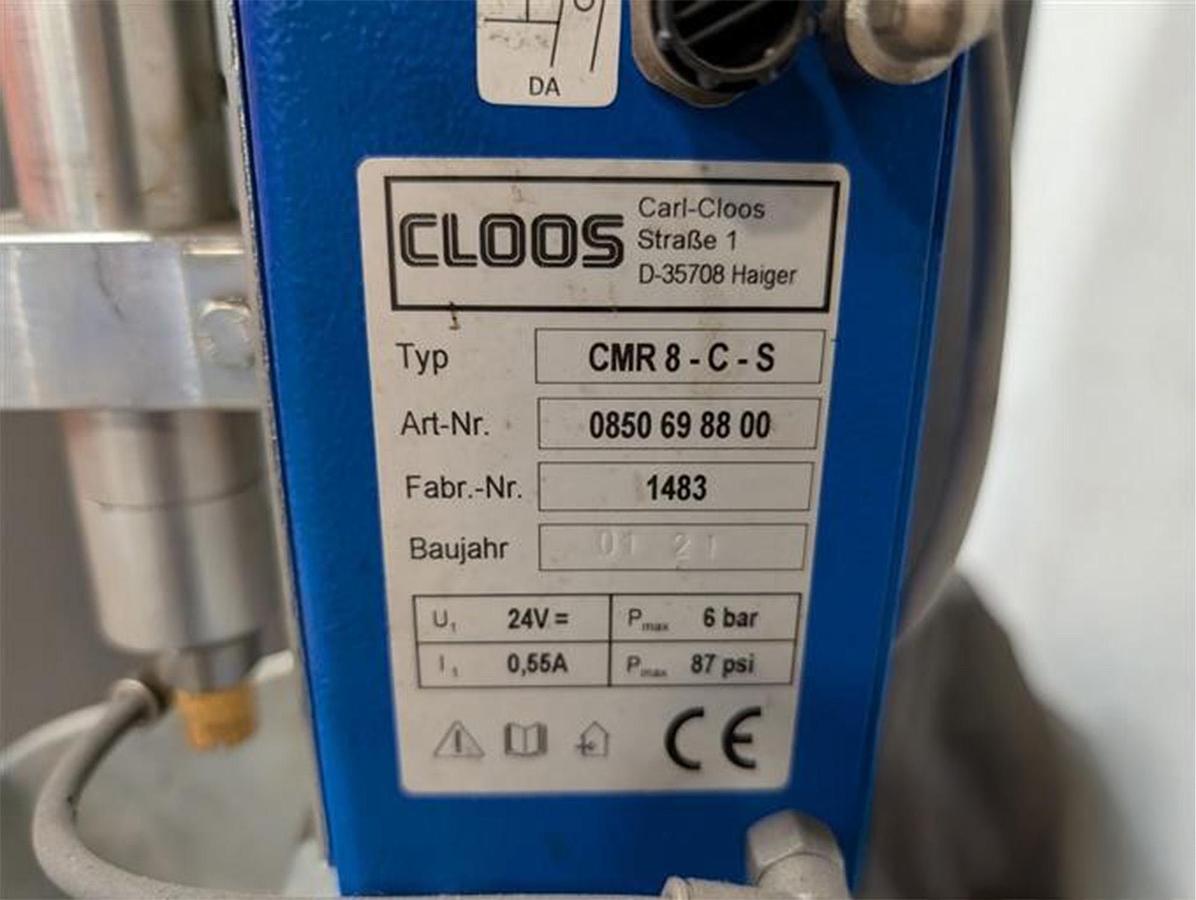

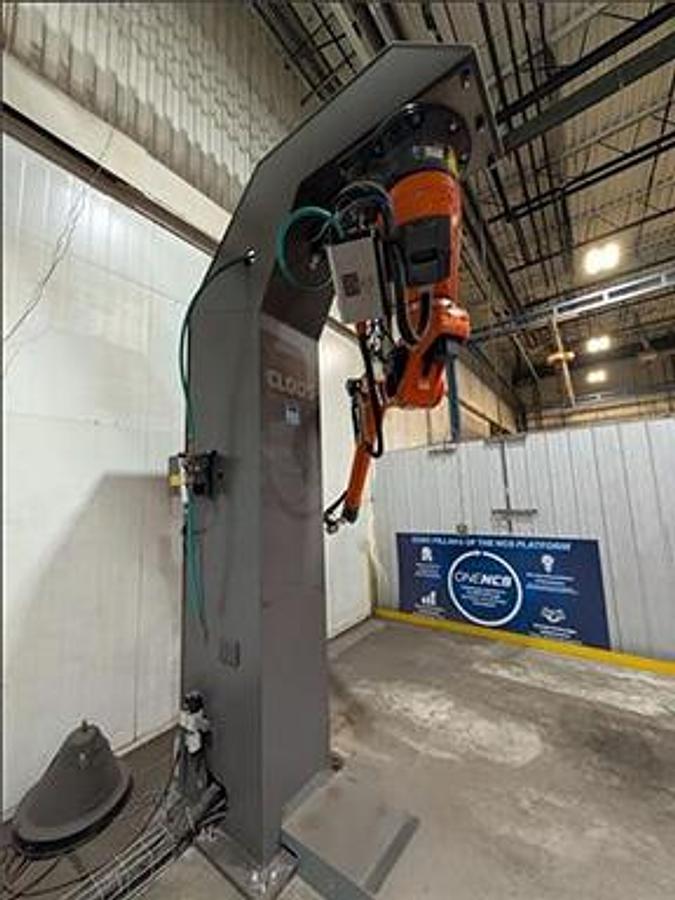

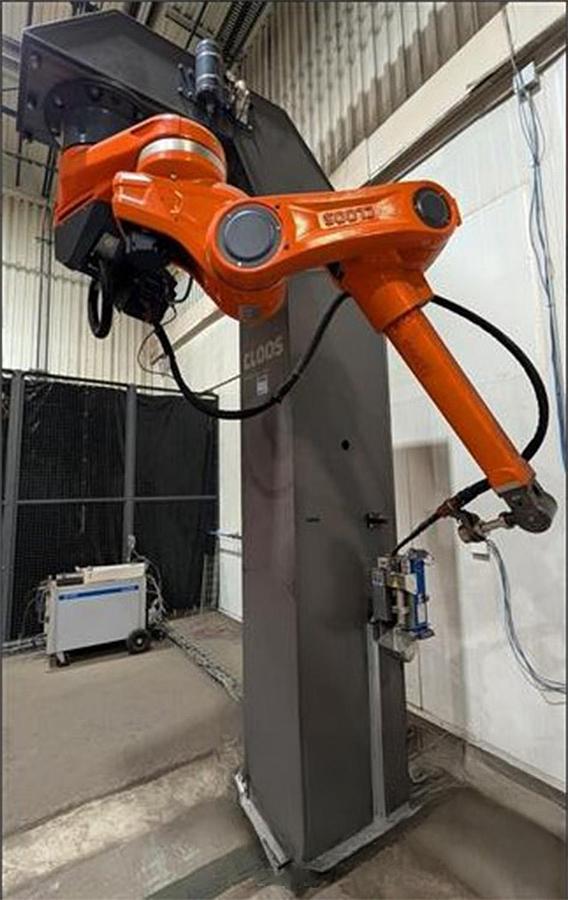

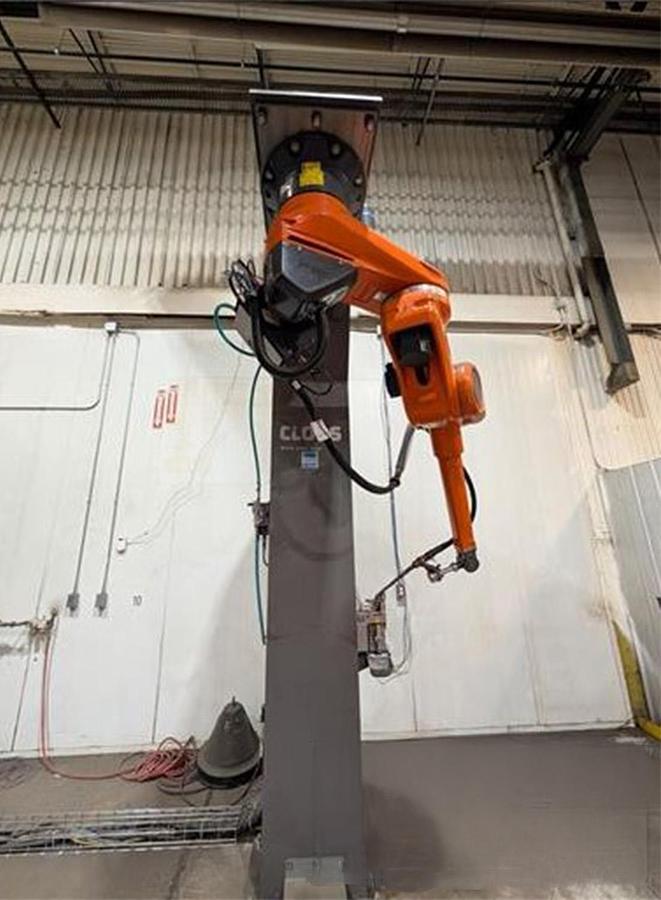

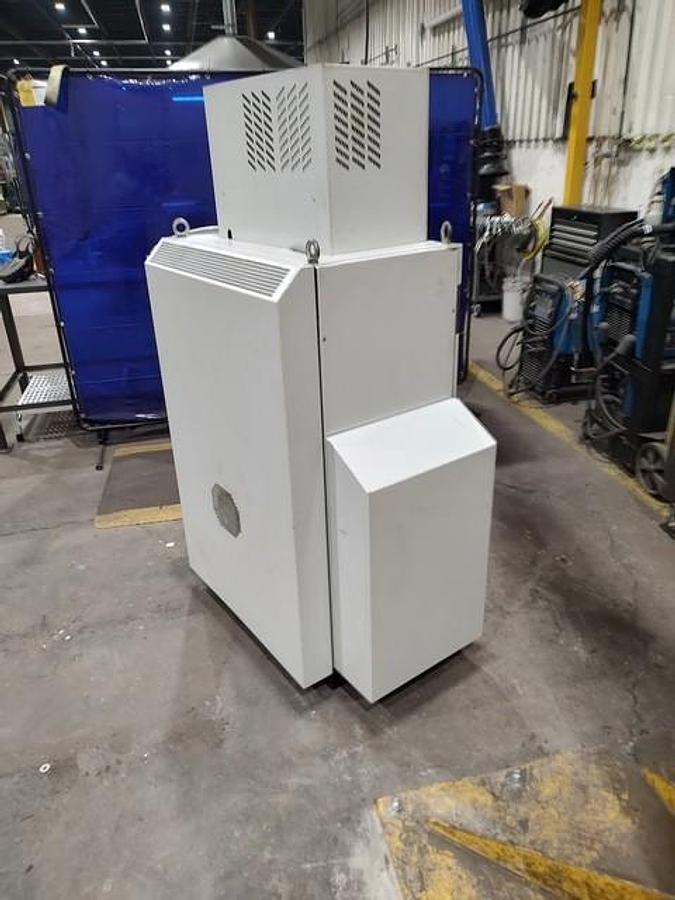

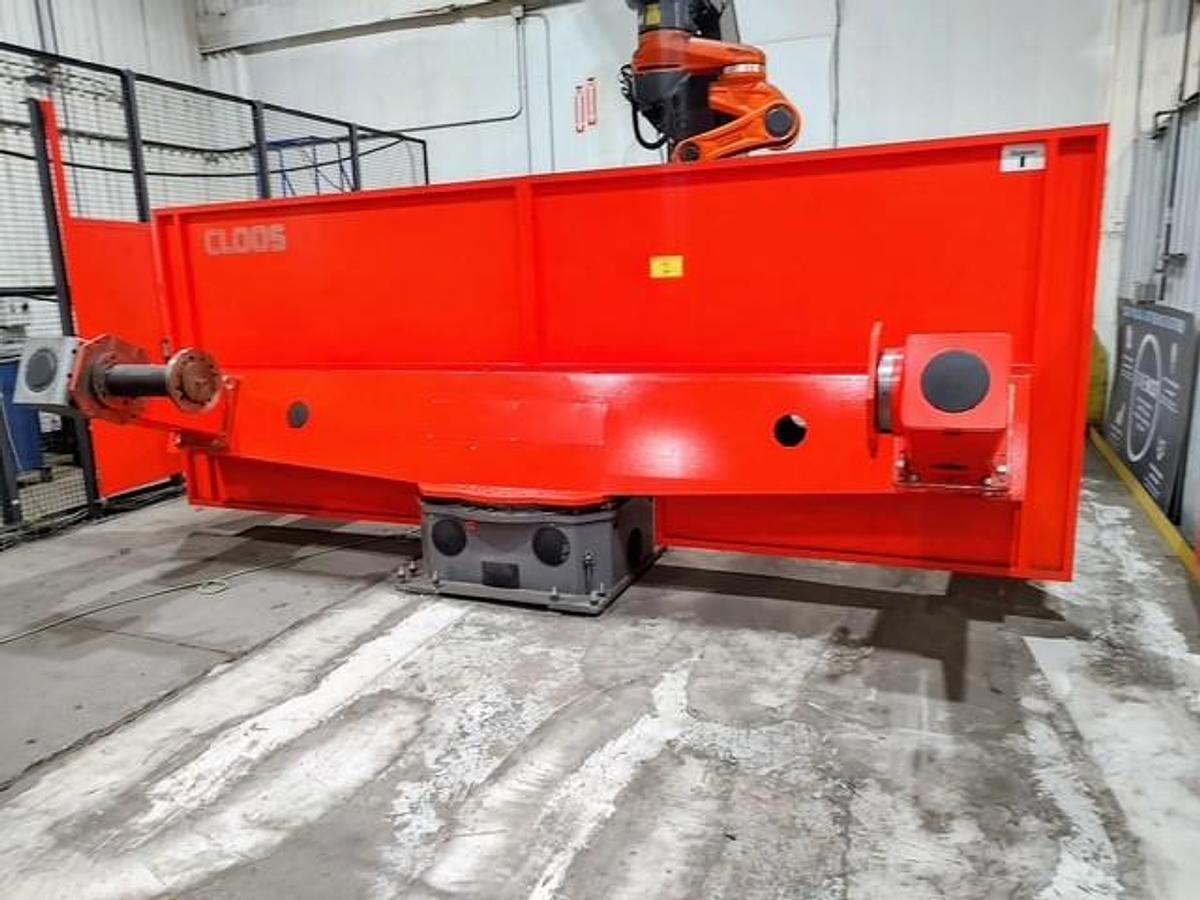

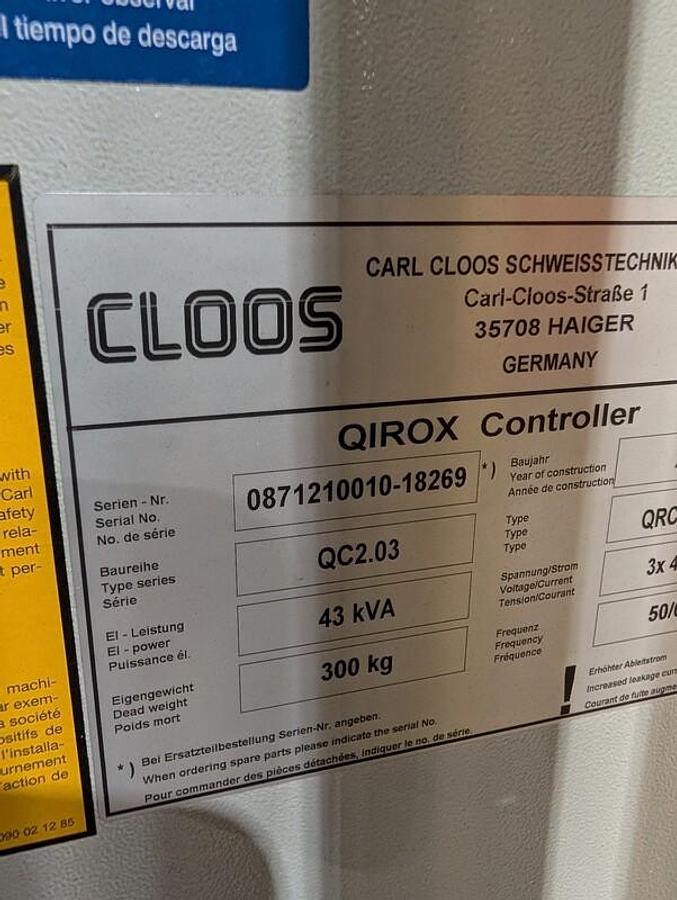

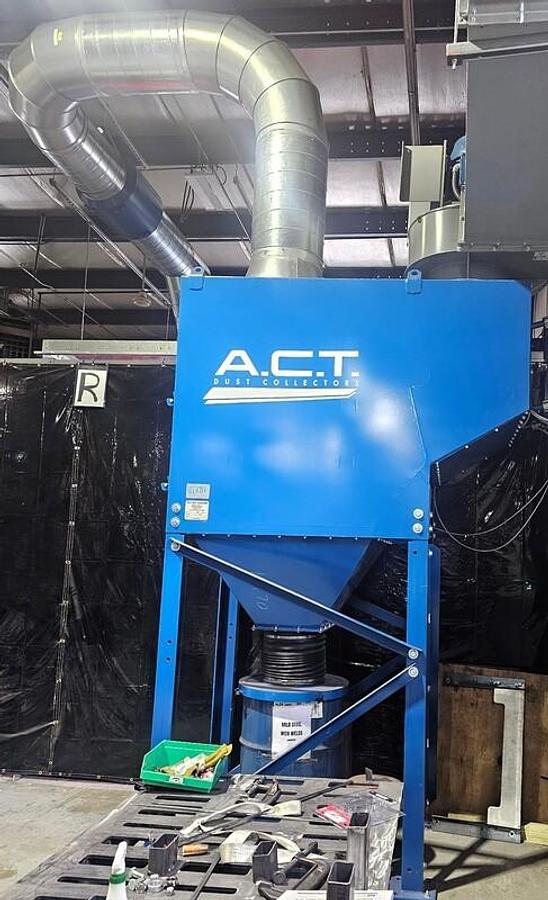

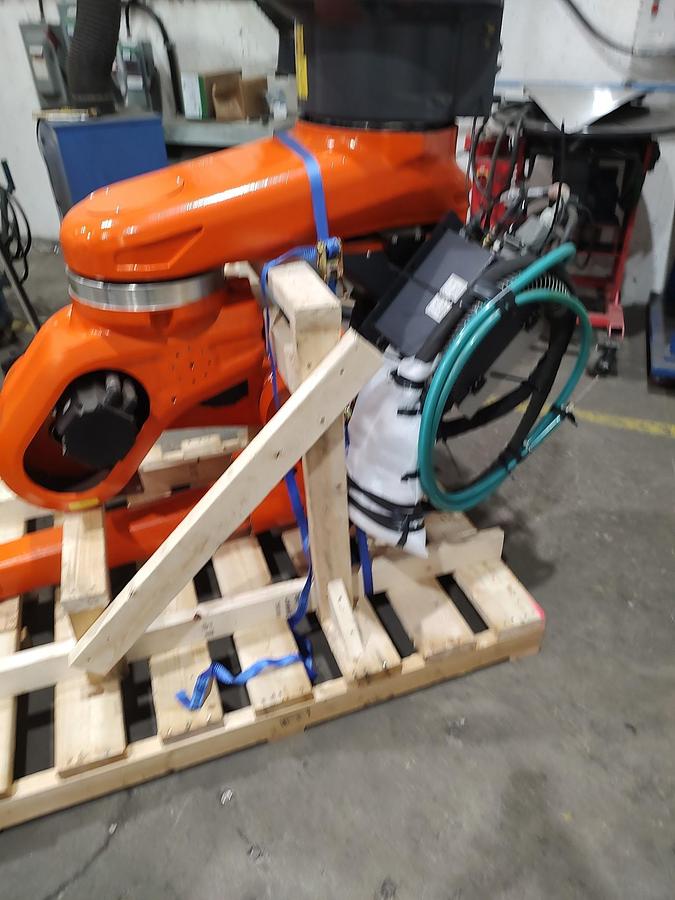

CLOOS QIROX CNC Control, Pendant Control | 7-Axis QIROX QRC Robot | CLOOS QIROX 2-Station Welding Fixture | CLOOS Qirox QR-CTU-50-09 2.0 Annex Positioners | CLOOS QINEO Pulse 451 Pro ARC Welding Power Source | CLOOS QRC410-E/Z 2.0 Robotic Arm | CLOOS CMR 8-C-S Torch Cleaning Unit | Light Curtains | Spare Parts | Dust Collector


LOW HOURS! 2,224 TOTAL!

Show All

Specifications

ManufacturerCloos
ModelCS-30
Year2021
ConditionUsed
Stock Number22525
Max. Load Per Station:2,248 lbs.
Max. Turning Speed:120/sec.
Positioner Face Diameter:15.75" x 15.75"
Headstock/Tailstock Swing:59"
Clamping Length:137"
Robot Pay Load:22 lbs.
Operating Range:240"
Robot Swivel Range:Axis 1: +170°/-170° | Axis 2: +125°/-90° | Axis 3: +80°/-210° | Axis 4: +179°/-179° | Axis 5: +135°/-135° | Axis 6: +270°/-270° | Axis 7: +120/-120°
Robot Swivel Speed:Axis 1: 184 DEG./SEC | Axis 2: 184 DEG./SEC | Axis 3: 177 DEG./SEC | Axis 4: 497 DEG./SEC | Axis 5: 542 DEG./SEC | Axis 6: 528 DEG./SEC | Axis 7: 90 DEG./SEC
