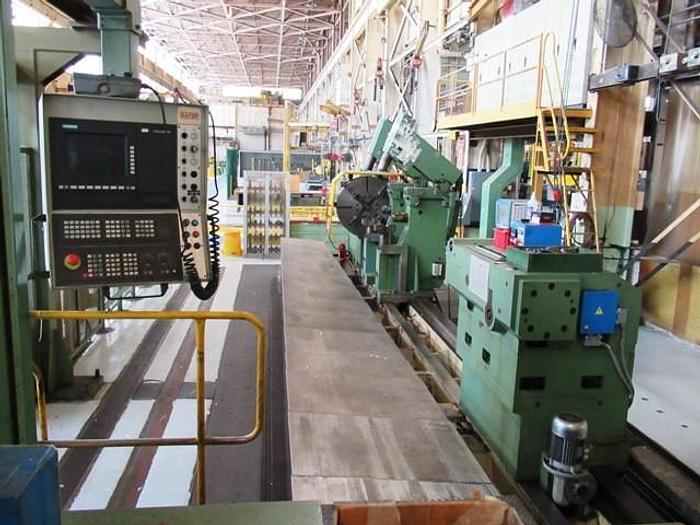

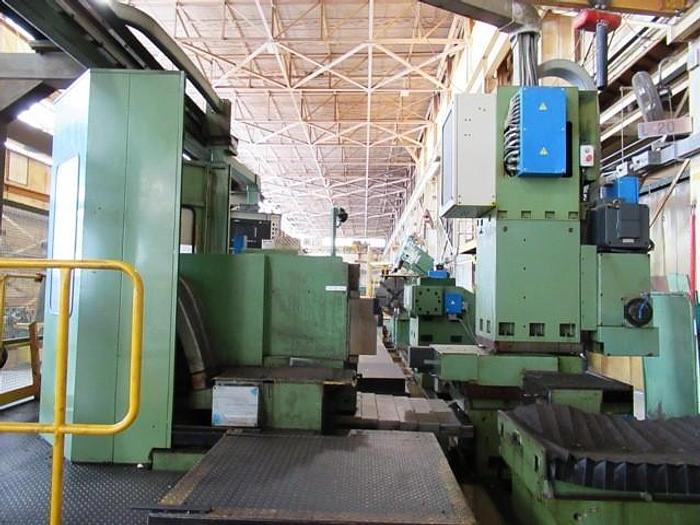

Safop Leonard Model 70/L-MC 82" x 23' CNC Live Spindle C-Axis Lathe
Safop Leonard Model 70/L-MC 82" x 23' CNC Live Spindle C-Axis Lathe
Location:Wellsville, NY
Description

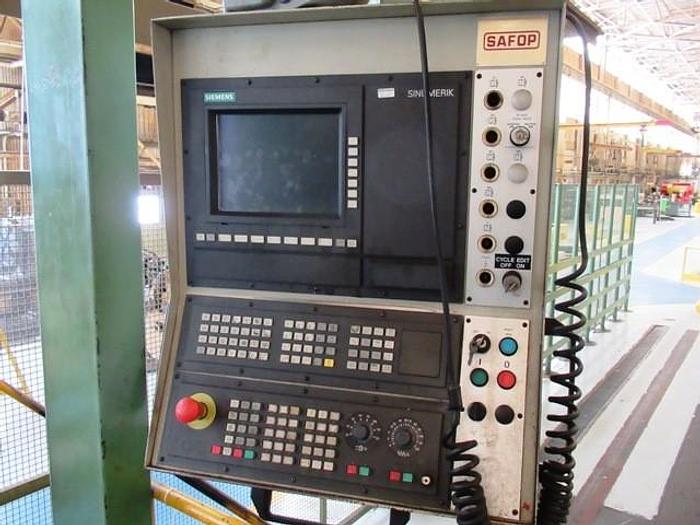

Siemens 840 CNC Control | 60 KW / 80 HP Headstock Motor | 1,000 mm / 39.37″ 4 Jaw Independent Chuck w/ 160 mm / 6.29″ Hole | C Axis & Live Milling | Automatic Tool Pallet System w/ Two Stations (Turning Carriage & Milling Unit Station)
Turning Carriage:
*Left Hand Blade – 520 mm travel, 64 mm thickness, CAPTO C automatic connection
*Right Hand Blade – 425 mm travel, 35 mm thickness, BT 32 connection
*Renishaw Workpiece Probe Capability

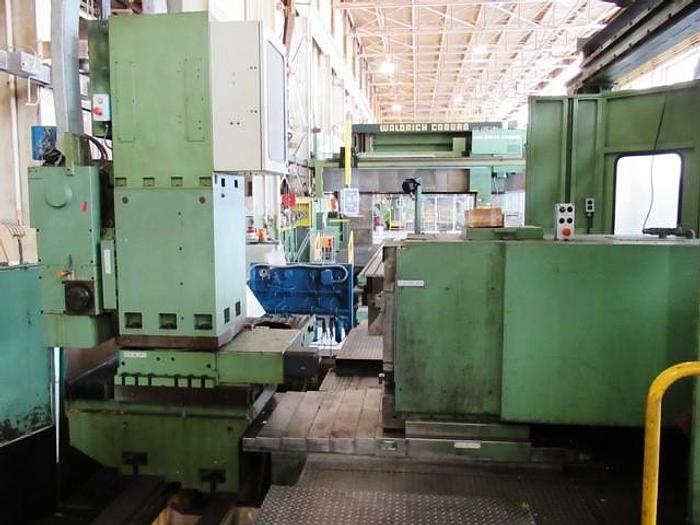

Milling Unit:
*22 KW / 30 HP, 3.45 – 1,875 RPM, CAT 50 TAPER
*90 Degree Angular Head
*Y Axis +/- 100 mm Cutter Travel
Grinding Attachment / Unit:
600 mm dia x 60 mm width, 1152 max RPM
Hydrostatic Z-Axis Longitudinal Carriage and X-Axis Cross Carriage
(2) C-Frame Steady Rests w/ 100 mm – 600 mm (3.93″ – 23.62″) Capacity Heidenhain Linear Scales & Rotary Encoders 3/3
*Z-Axis Longitudinal Carriage & X-Axis Cross Carriage Can Pass By The Headstock & Tailstock*

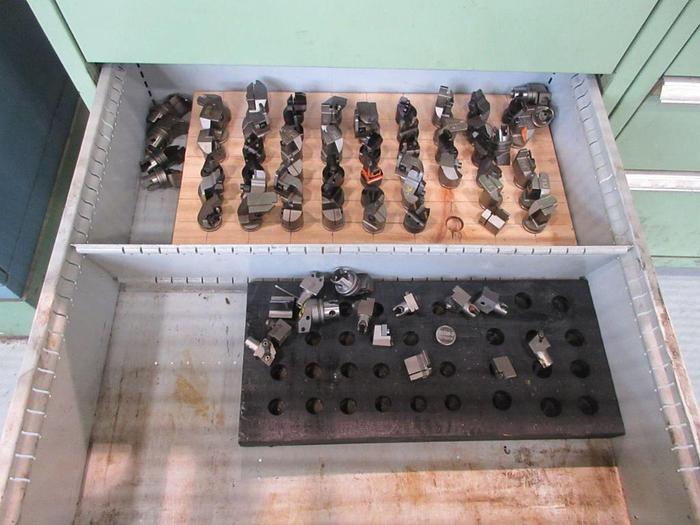

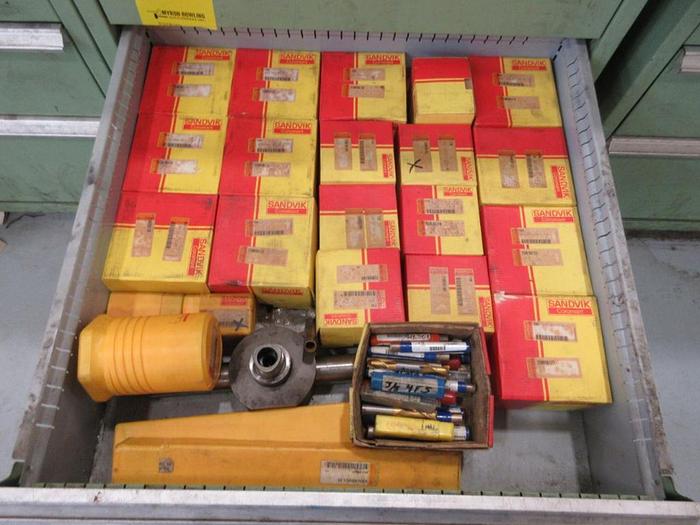

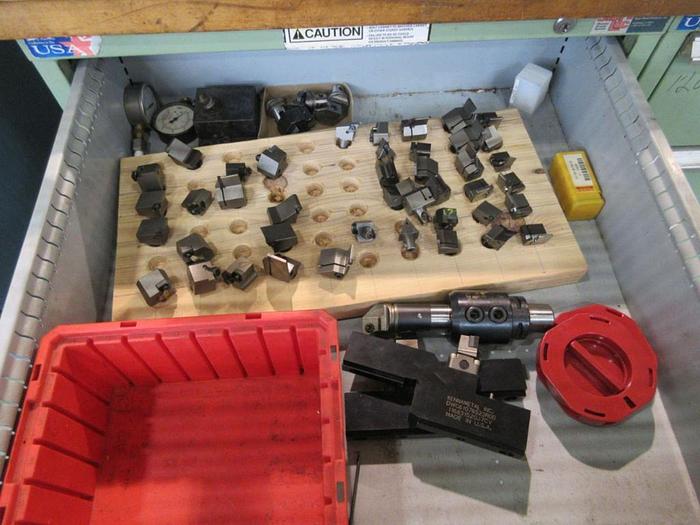

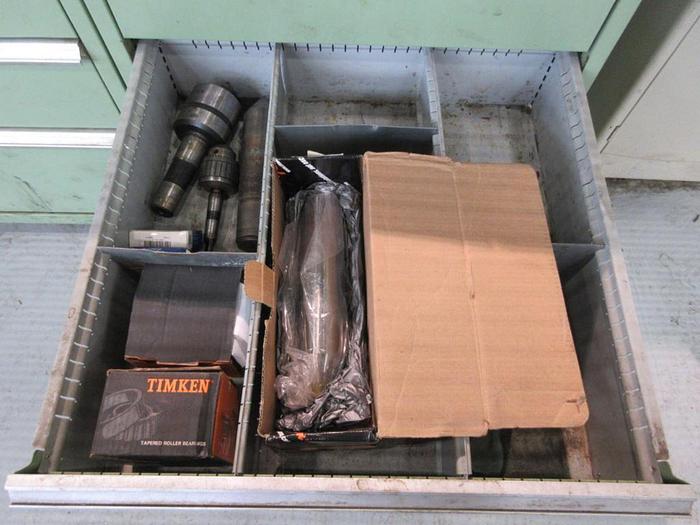

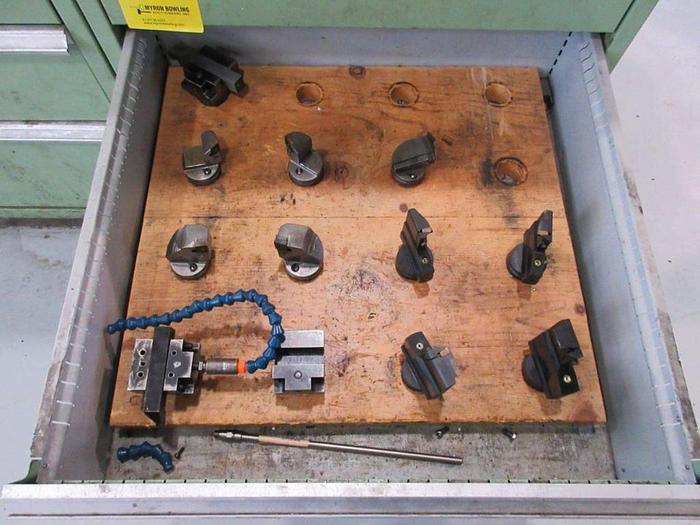

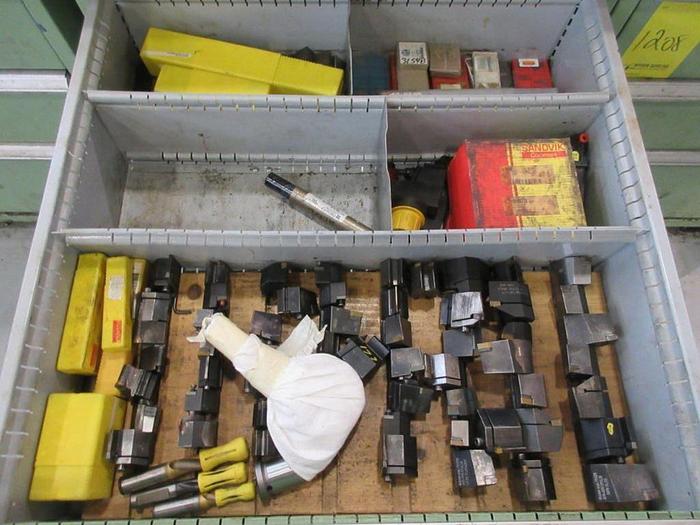

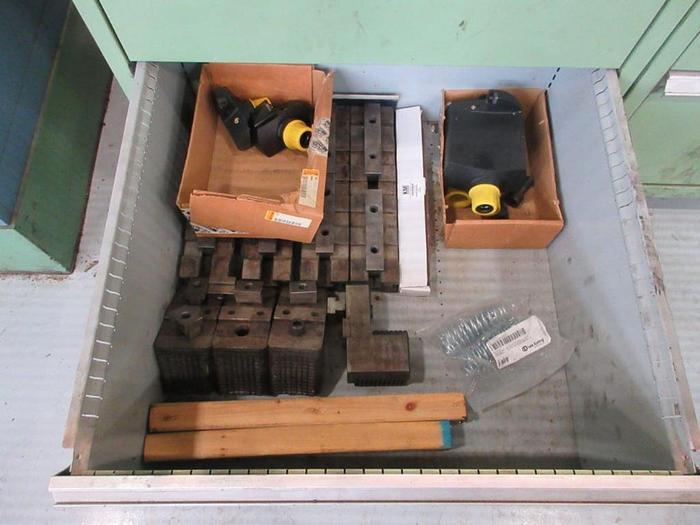

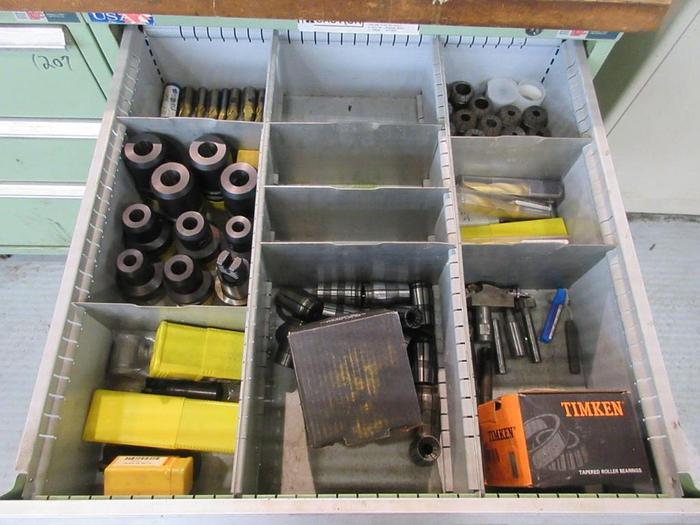

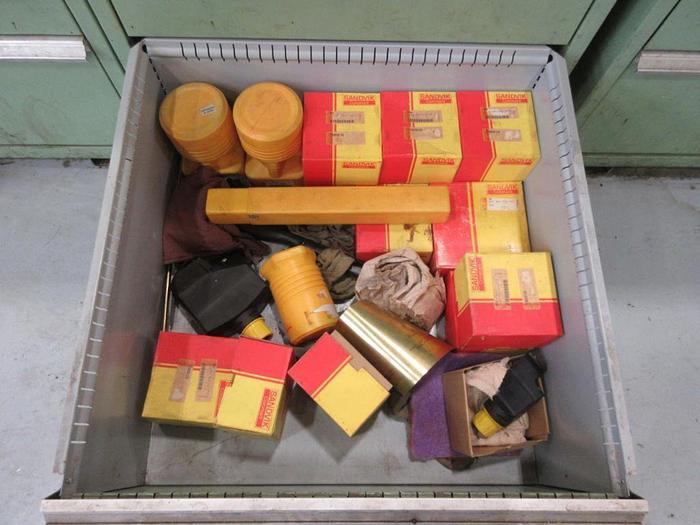

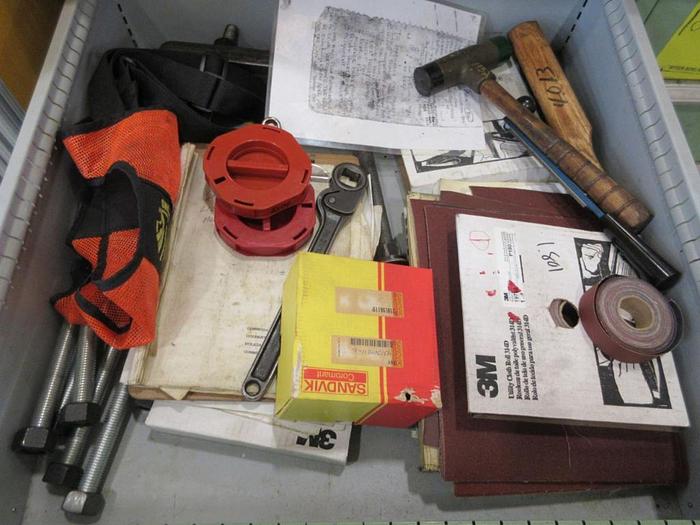

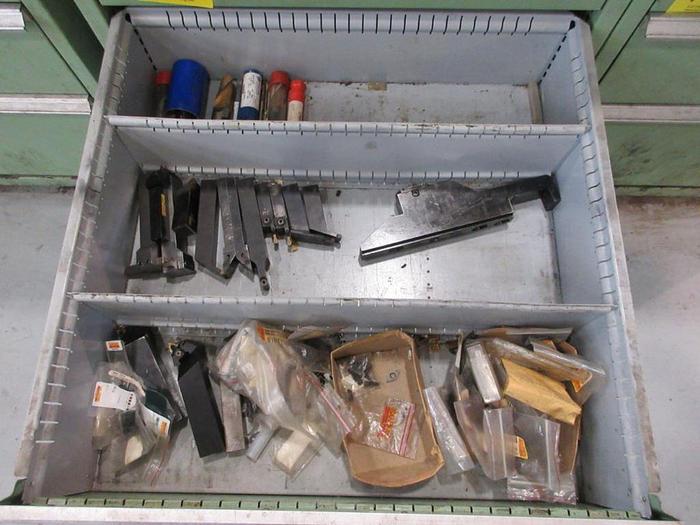

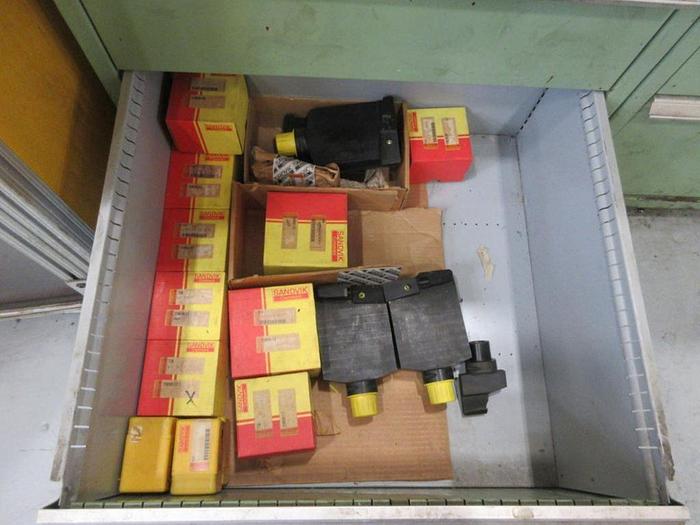

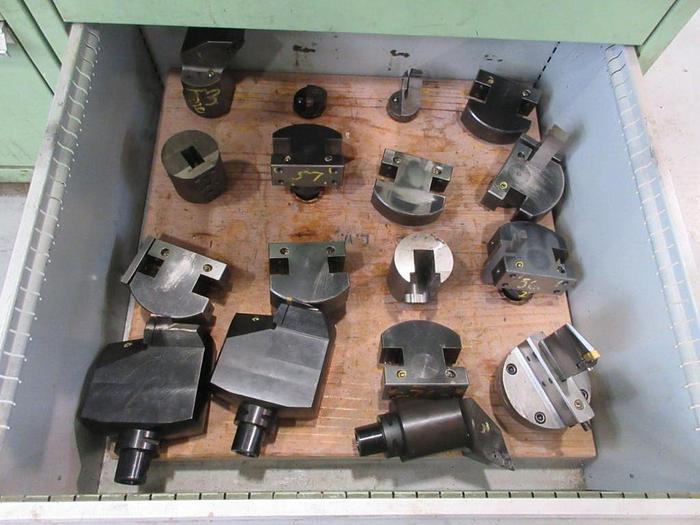

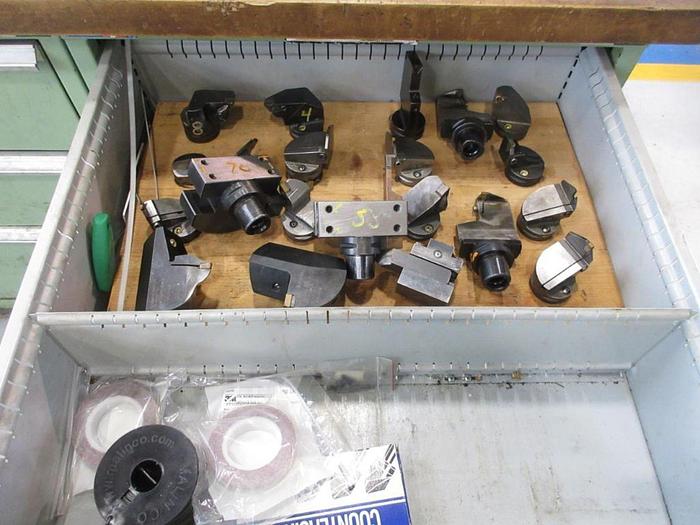

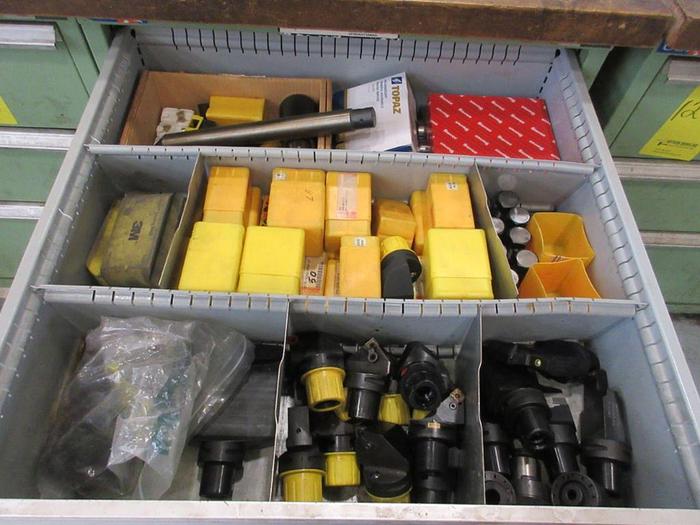

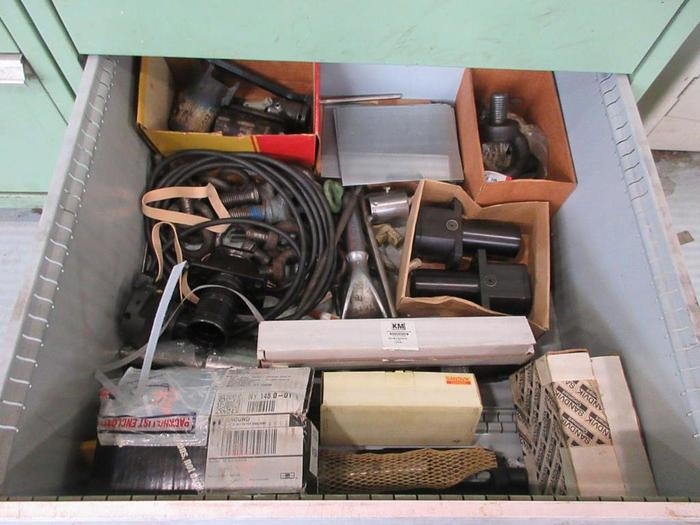

Large Compliment of Tooling Included
Specifications
| Manufacturer | Safop Leonard |
| Model | 70/L-MC |
| Year | 1998 |
| Condition | Used |
| Serial Number | 3261 |
| Stock Number | 22321 |
| Chuck Size | 32" 3-Jaw |
| Max. Swing | 82.6" |
| Max. Swing Over Carriage | 61.4" |
| Center Distance | 284.25" |
| Center Distance (Estimated w/ Tool Pallets Removed) | 355" |
| Max. Turning Length | 275" |
| Max. Workpiece Diameter | 59" |
| Max. Unsupported Weight Between Centers | 61,729 lbs. |
| Max. Supported Weight Between Centers Steady Rests | 36 Tons |
| Cross Stroke of Left Hand Blade | 20.47" |
| Cross Stroke of Right Hand Blade | 16.7" |
| Cross Carriage Stroke (X-Axis) | 31.5" |
| Headstock Speed Range | to 400 RPM |
| Headstock C-Axis Speed Range | .005 to 5 RPM |
| Carriage Logitudinal Stroke (Z-Axis) | 521" |
| Carriage Logitudinal Rapid Feed Rate (Z-Axis) | 482 IPM |
| Milling Unit Y-Axis | +/- 100 mm, +/- 3.93" |
| Tailstock Quill Diameter | 11.81" |
| Tailstock Quill Stroke | 11.41" |
