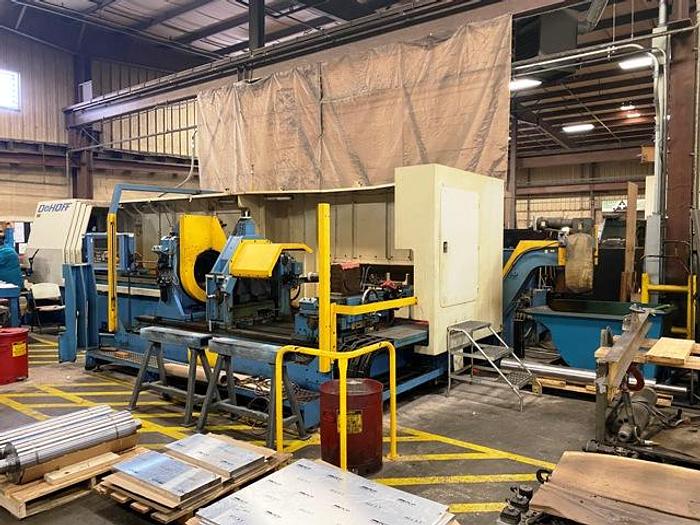

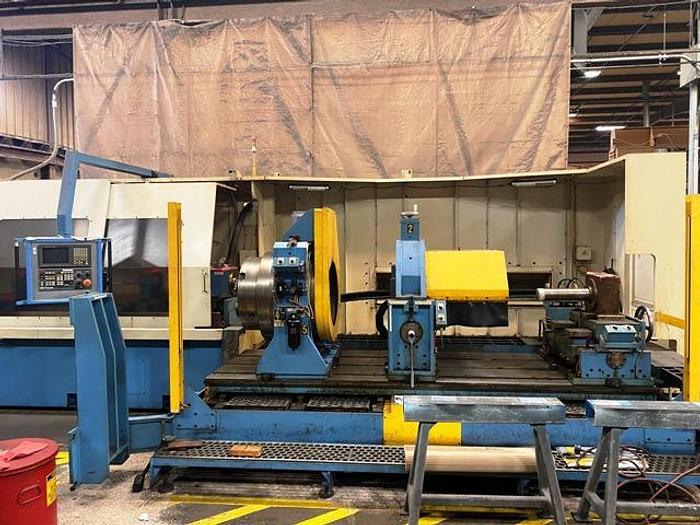

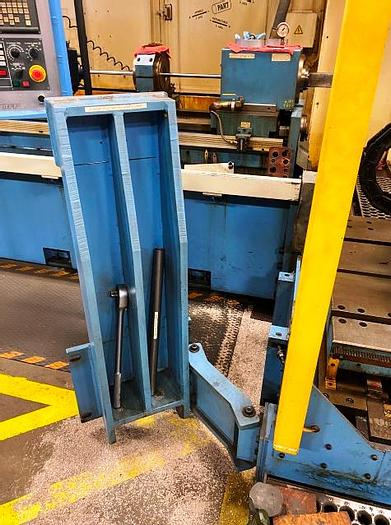

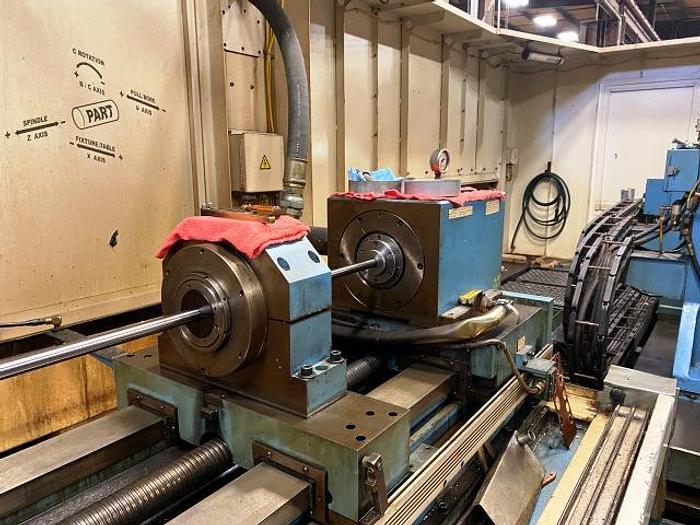

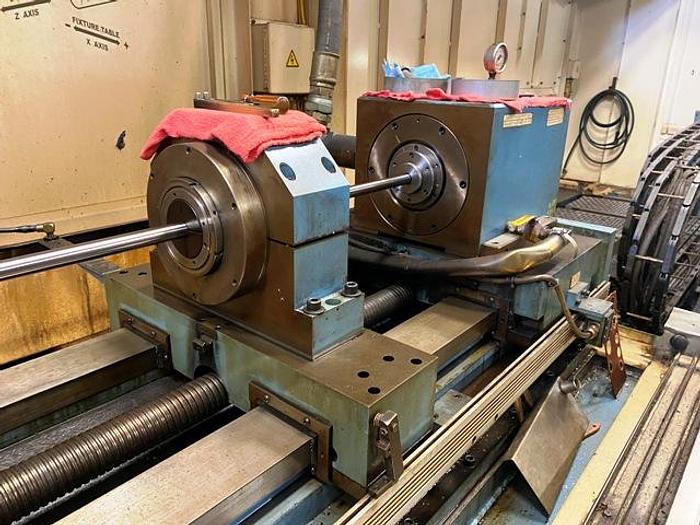

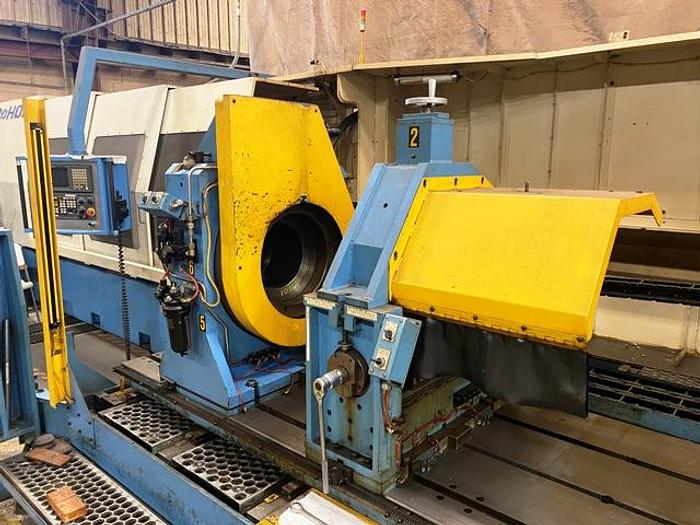

2007 DeHoff 3" x 120" CNC Trepanning Deep Hole Gundrill
2007 DeHoff 3" x 120" CNC Trepanning Deep Hole Gundrill
Contact us for price
Location:Chicago, IL
Description

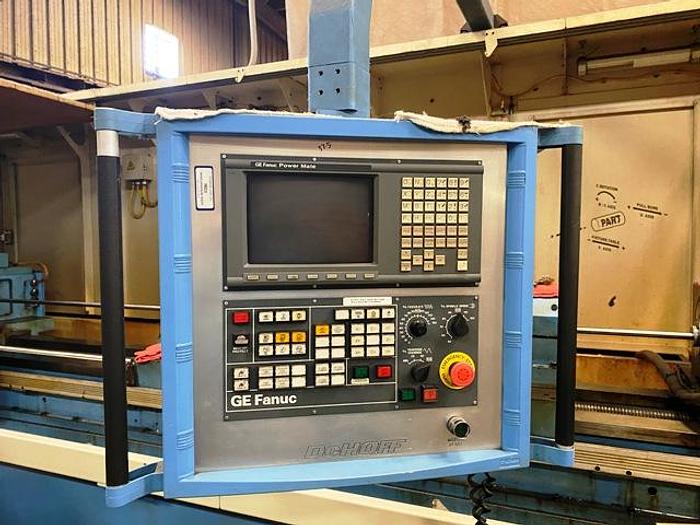

25" CNC Rotating Tailstock Chuck with 11" Bore | C-Axis Rotation | B-Axis Pull Bore | High-Pressure Coolant System | Fanuc Powermate CNC Pendant Control | Full Enclosure | HUGE Assortment of Tooling

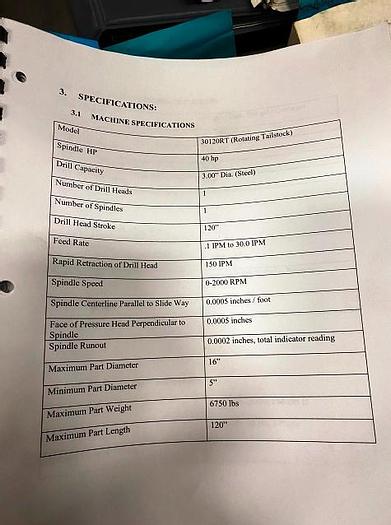

Specifications
| Manufacturer | DeHoff |
| Model | 30120RT/FIX-BTA |
| Year | 2007 |
| Condition | Used |

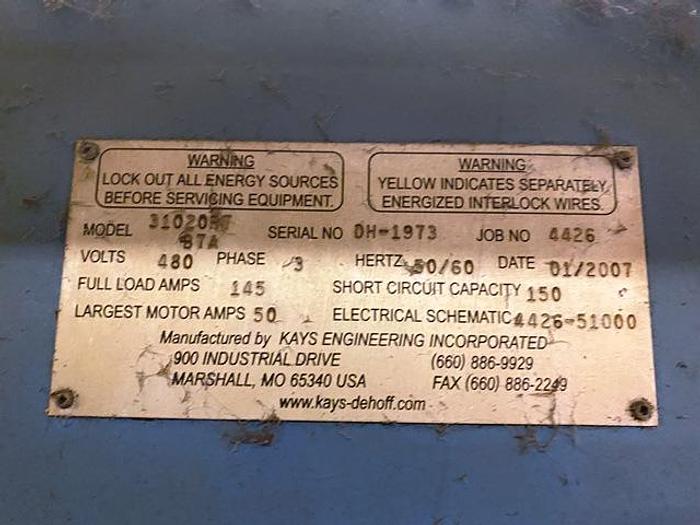

| Serial Number | DH-1973 |
| Stock Number | 22335 |
| Spindle HP | 40 |
| Max Spindle Speed | 0-2,000 RPM |
| Drill Capacity | 3" |
| Drill Head Stroke | 120" |
| Feed Rate | .1 to 30 IPM |
| Rapid Retraction | 120 IPM |
| Spindle Speeds | to 2,000 RPM |
| Max. Part Diameter | 16" |
| Min. Part Diameter | 5" |
| Max. Part Weight | 6,750 lbs. |
| Max. Part Length | 120" |
| Axis Rotation | B/C Axis |
| Pull Bore | U Axis |
| Fixture Table | X Axis |
| Spindle | Z Axis |

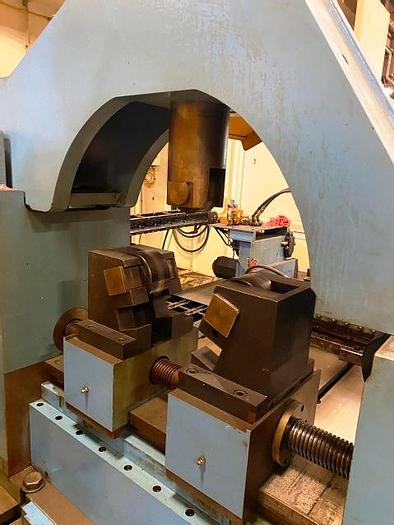

| Pneumatic Lift Assist | Counter Rotation Assembly, Part Steady Rest & U Axis Fixture Table |

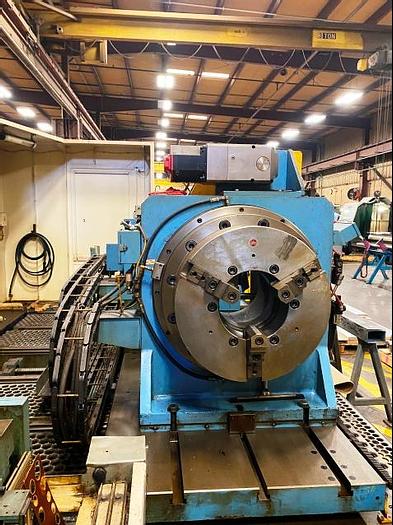

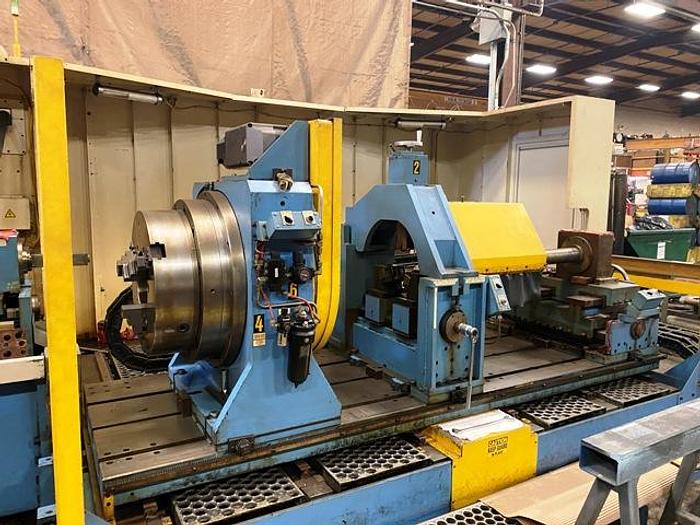

| Chuck | 35.5" 3 Jaw w/ 17" Hole & Adaptor Plate |

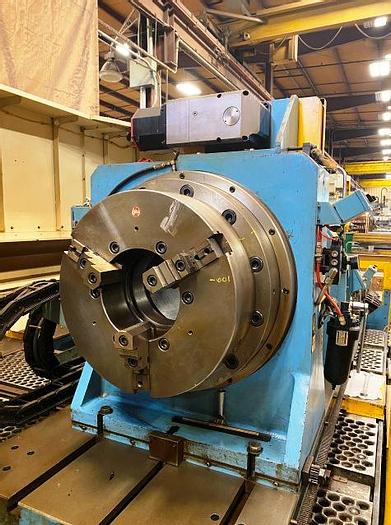

| Chuck | 25" 3 Jaw w/ 11" Hole Adaptor Plate & Sleeve Insert |

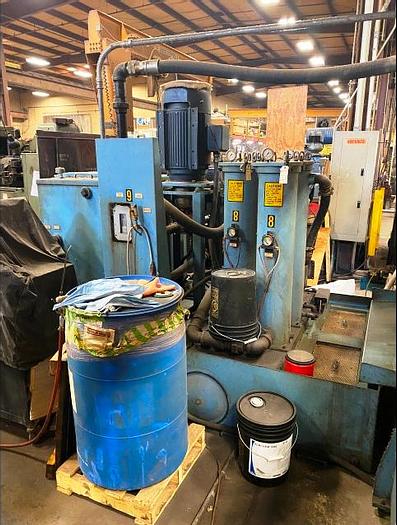

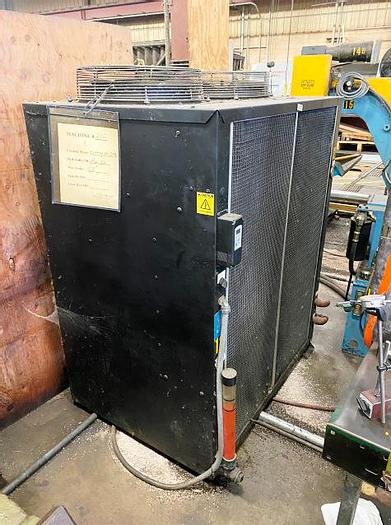

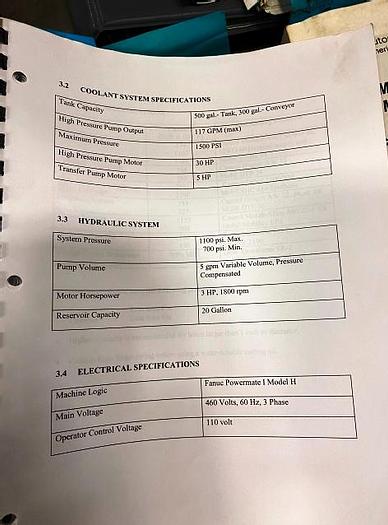

| Gear Pump | 1,500 PSI Fixed Displacement High Pressure w/AC Variable Freq Drive - 117 GPM Max |

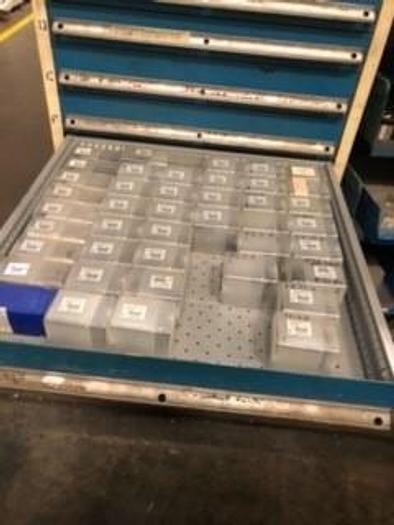

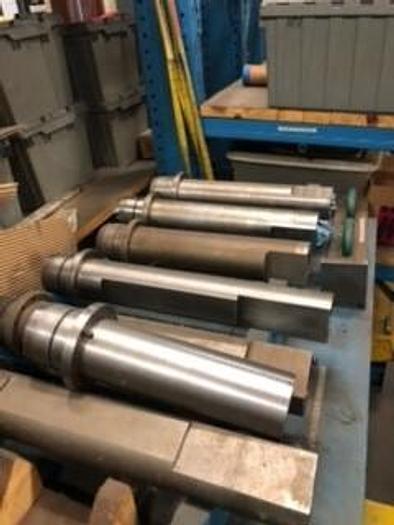

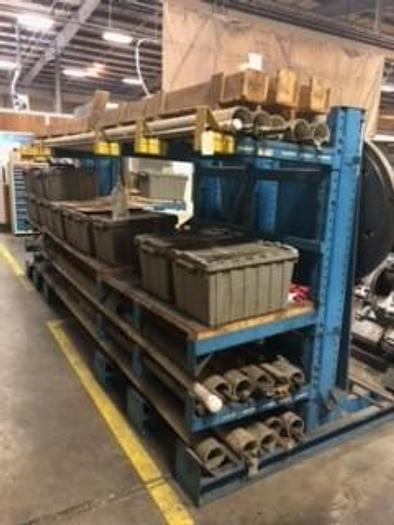

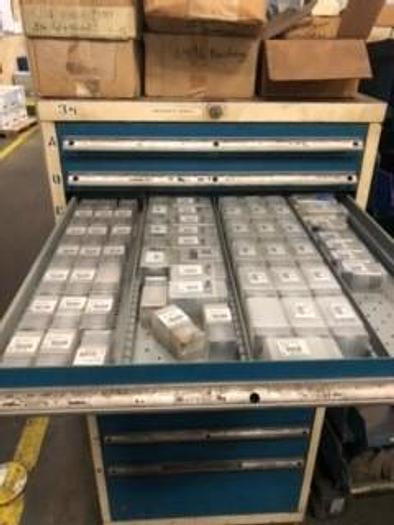

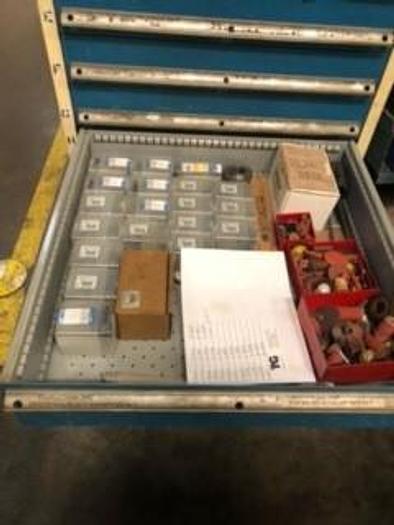

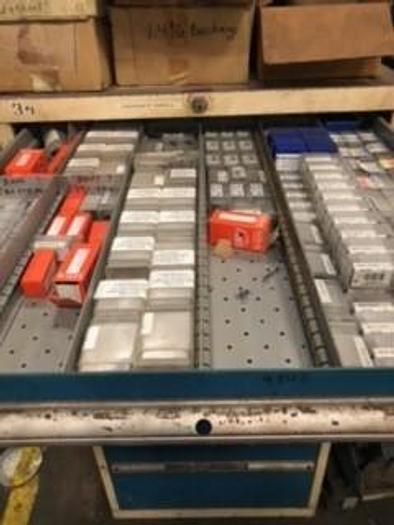

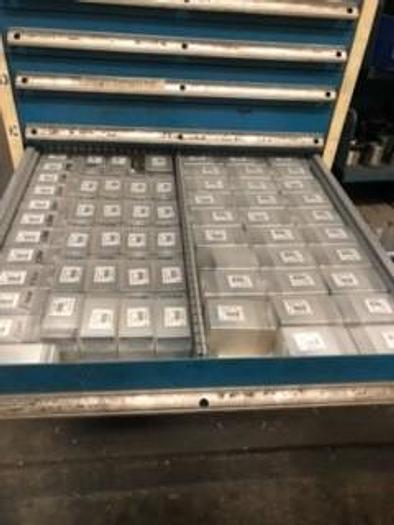

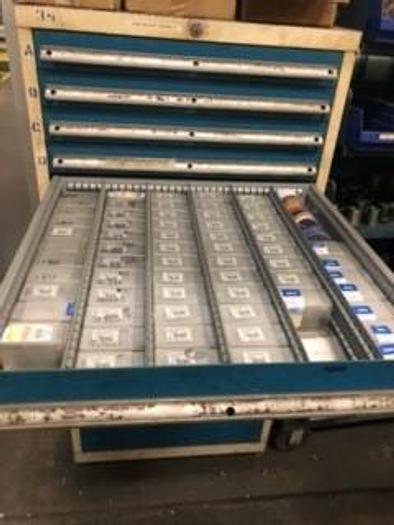

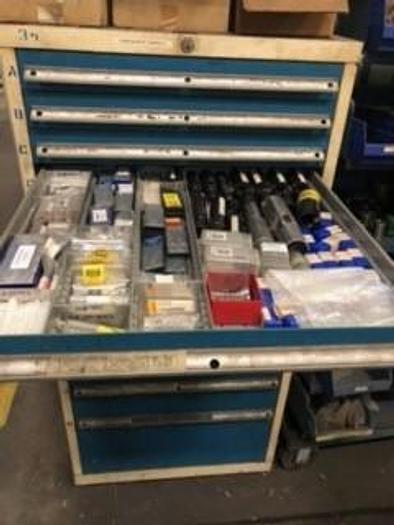

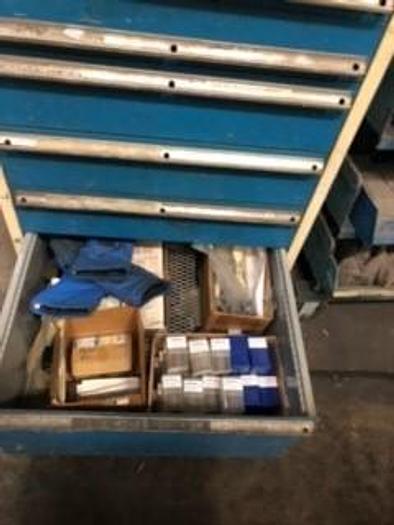

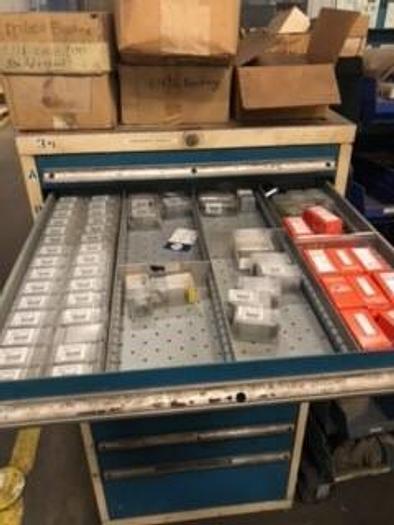

| Tooling | Large Quantity of Various Size Drill Heads, C`Bore Heads, Carbide Inserts, Adaptors, Connectors, Drive Units, Split Clamps & Seal Rings, Bearings, & Misc |
