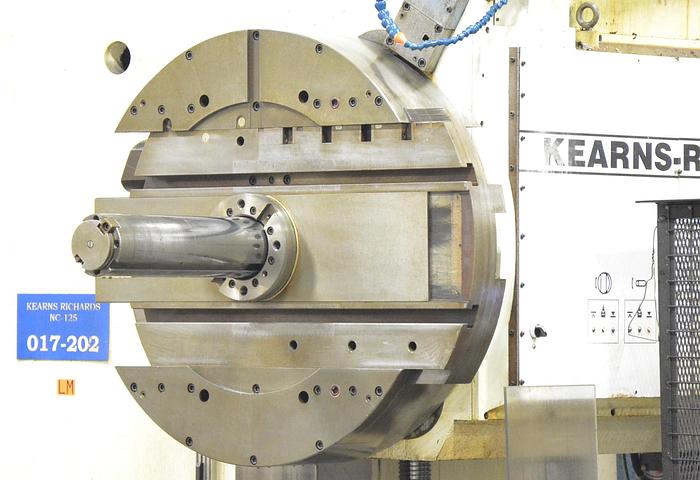

2002 Kearns & Richards 4.92" 3-Axis CNC Table Type Horizontal Boring Mill with Programmable Facing Head
2002 Kearns & Richards 4.92" 3-Axis CNC Table Type Horizontal Boring Mill with Programmable Facing Head
Contact us for price
Location:Mississauga, Canada
or
Call 1 704-821-7370
Description

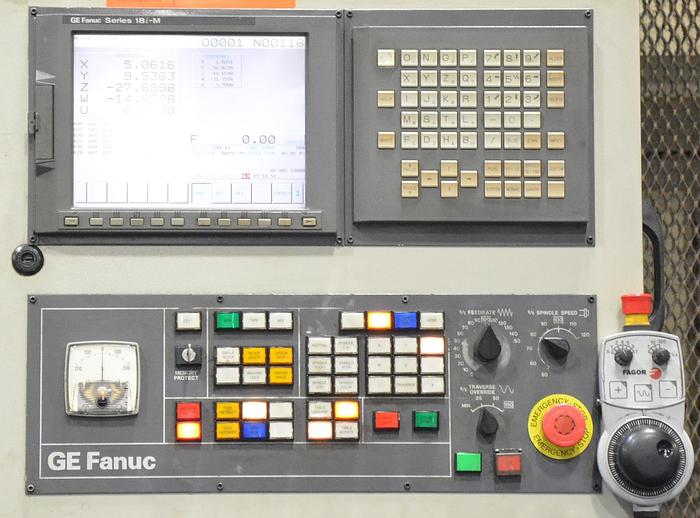

FANUC 18I-M 5-Axis CNC Control | Coolant | Chip Conveyor | Outboard Supports | 600V/3PH/50-60HZ | Re-Manufactured & Retrofit 2002 | B-Axis Rotary Table
Specifications
| Manufacturer | Kearns & Richards |
| Model | 125L |
| Year | 2002 |
| Condition | Used |
| Serial Number | 7312 |
| Stock Number | 22278 |
| Table Size | 60" x 60" |
| X-Axis Travel (Table Cross) | 90.98" |
| Y-Axis Travel (Vertical) | 71.20" |
| Z-Axis Travel (Spindle Quill) | 28" |
| Q-Axis Travel (Table Longitudinal) | 50.70" |
| U-Axis Travel (Facing Head Slide) | 7.60" |
| Spindel Diameter | 4.92" |
| Spindle Taper | #50 |
| Spindle Speeds | to 1,120 RPM |
