2012 Kearns & Richards 4.92" 4-Axis CNC Table Type Horizontal Boring Mill with Programable Rotary Table & Facing Head
Sold
2012 Kearns & Richards 4.92" 4-Axis CNC Table Type Horizontal Boring Mill with Programable Rotary Table & Facing Head
Location:York, PA
Description

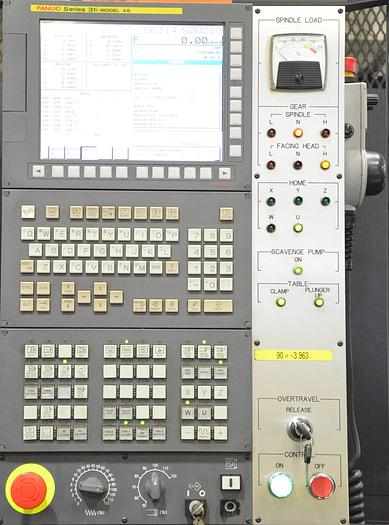

FANUC 31I-Model A5 4-Axis CNC Control | Coolant | Chip Conveyor | Outboard Supports | 600V/3PH/50-60HZ | Re-Manufactured & Retrofit 2012 | B-Axis | Built In & Programmable Rotary Table | Remanufactured & Retrofitted | Fanuc AC Spindle Motor
Specifications
| Manufacturer | Kearns & Richards |
| Model | 125L |
| Year | 2012 |
| Condition | Used |
| Serial Number | 7297 |
| Stock Number | 22280 |
| Spindle Diameter | 4.92" |
| Spindle Taper | #50 |
| Spindle Speeds | to 1,120 RPM |
| Table Size | 60" x 60" |
| X-Axis Travel (Table Cross) | 90.98" |
| Y-Axis Travel (Vertical) | 71.20" |
| Z-Axis Travel (Spindle Quill) | 28" |
| W-Axis Travel (Table Longitudinal) | 58.70" |

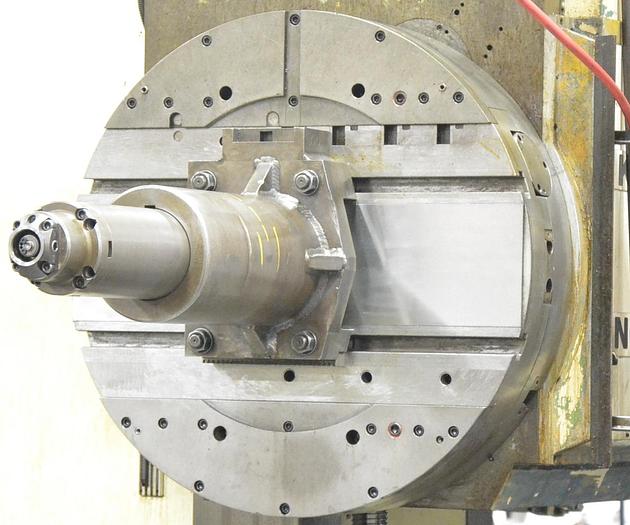

| U-Axis Travel (Facing Head Slide) | 7.60" |
| Nominal Dimension of Facing Head: | 35" |
| Continuous Rating (Spindle Motor): | 37/26 Kw @ 1500-4000/6000 RPM (34/49 HP) |
| 30 Minute Rating (Spindle Motor): | 30/445 Kw (40 HP/60 HP) |
