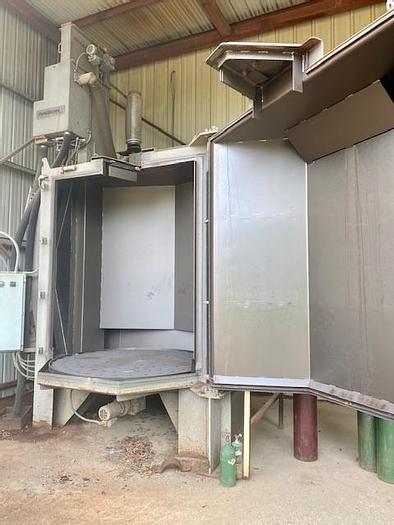

2010 Pangborn 72" Shot Blast Table

2010 Pangborn 72" Shot Blast Table

Contact us for price

Laurel, MS

orCall 1 704-821-7370

Description

72" Diameter Table with 70" Work Height | (2) 25 HP Direct Drive Wheels | Optional Integral Dust Collector | Low Hours Only 193 of Use

  • Available with (2) 15" Diameter 15 HSP Rotoblast Wheels

Specifications

ManufacturerPangborn
Model6LK - 10
Year2010
ConditionUsed
Stock Number22285
Maximum Work Diameter6'
Work Height5' 10"
Load Height (A)2' 10"
Overall Length (B)9' 10"
Overall Depth (C)9' 2"
Overall Height (D)10' 11"
Maximum Load Capacity5,000 lbs
Rotoblast Wheel Diameter & Drive(2) 15" Diameter - 15 HSP
Abrasive Flow / Hour32,000 lbs / Hour

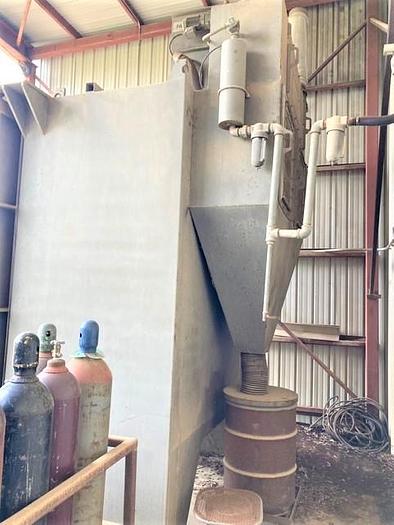

Dust collector Volume1,700 (Integral)
Standard Electric (Machine Wired)460 / 3 / 60
Abrasive Velocity / 295 FT / Sec (74 m / sec)@ 3,000 RPM 50 HZ
Approx. Weight16,000 lbs
Abrasive Loading2,000 lbs
