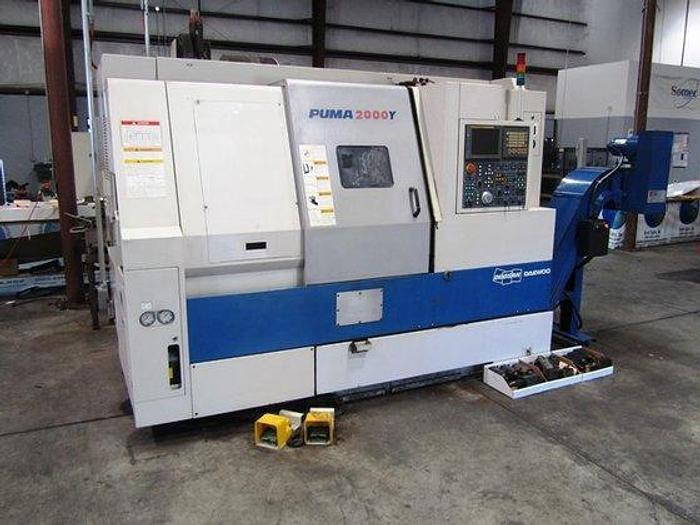

2005 Doosan Puma 2000Y CNC Turning Center w/ Milling & Y-Axis
Sold
2005 Doosan Puma 2000Y CNC Turning Center w/ Milling & Y-Axis
Location:Indian Trail, NC
Description

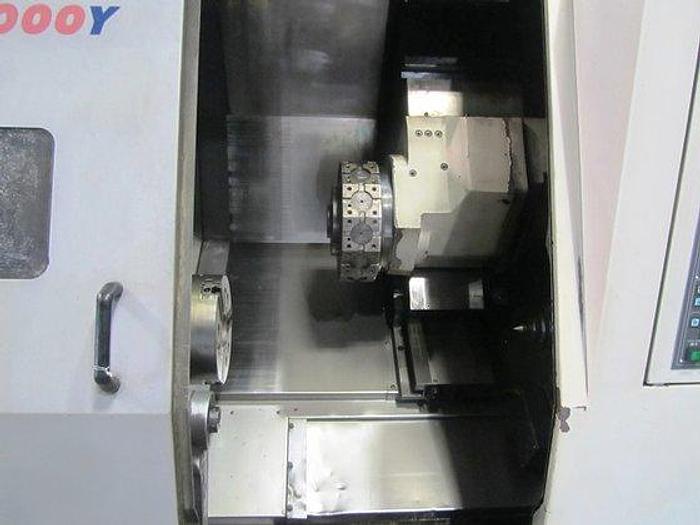

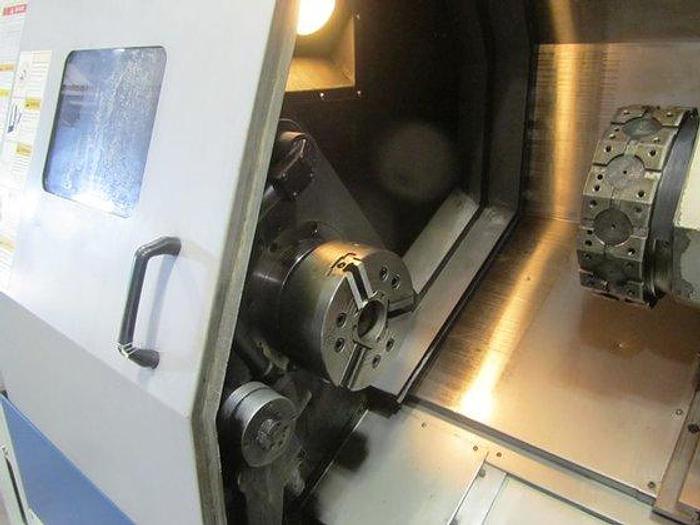

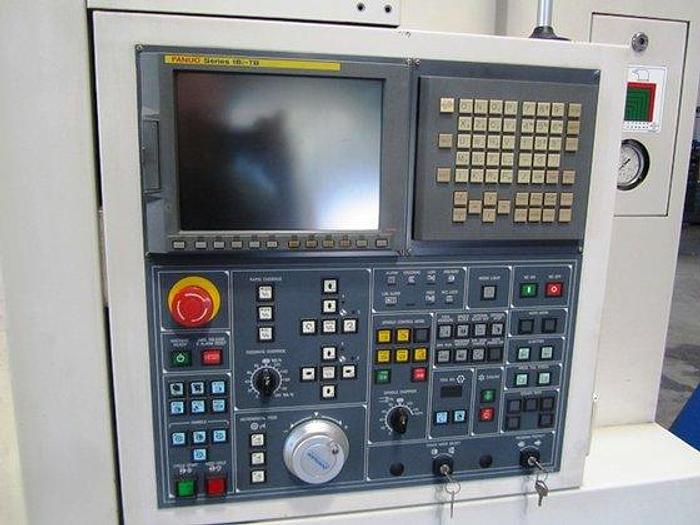

Equipped With: 10" 3-Jaw Power Chuck* 12 Position Turret w/ Milling & Y-Axis* Tool Eye* LNS Chip Conveyor* Fanuc Series 18i-TB CNC Control
Specifications
| Manufacturer | Doosan |
| Model | Puma 2000Y |
| Year | 2005 |
| Condition | Used |
| Serial Number | P2000Y0535 |
| Stock Number | 2109 |
| C-axis | 0.001 Degree |
| Floor space | 115" x 70" |
| Spindle bore | 2.99" |
| Spindle nose | A2-6 |
| Spindle motor | 20 HP |
| Machine weight | 10,470 lbs |
| Spindle speeds | Up to 5,000 RPM |
| Swing over bed | 23.6" |
| Index positions | 24 |
| Tool holder type | BMT 55 |
| Max. bar capacity | 2.625" |
| Turret index time | 0.1 Seconds |
| Rotating tools rpm | 5,000 |
| Boring bar diameter | 1.5" |
| Max. turning length | 20" |
| Swing over carriage | 21.6" |
| Rapid traverse x,z,y | 790/945/295 IPM |
| Max. turning diameter | 13" |
| Tailstock quill stroke | 4.7" |
| Tailstock spindle taper | MT #3 |
| Turning tool shank size | 1" |
| Tailstock quill diameter | 3.1" |
| Rotating tool spindle motor | 7.5 HP |
