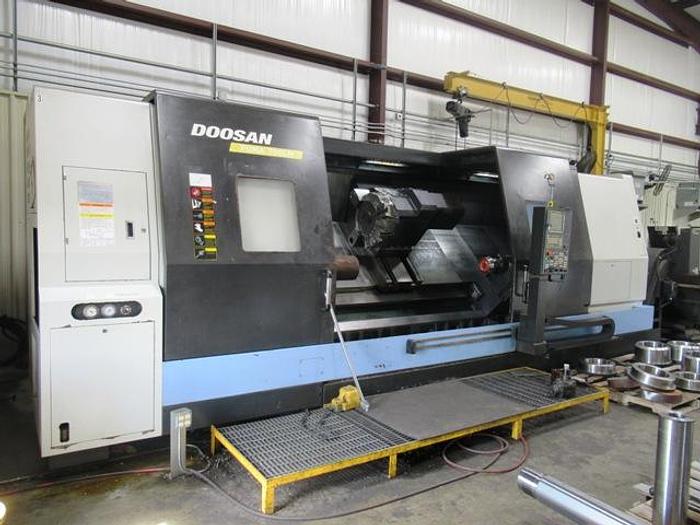

2014 Doosan Puma 700LM
Sold
2014 Doosan Puma 700LM
Location:Indian Trail, NC
Description

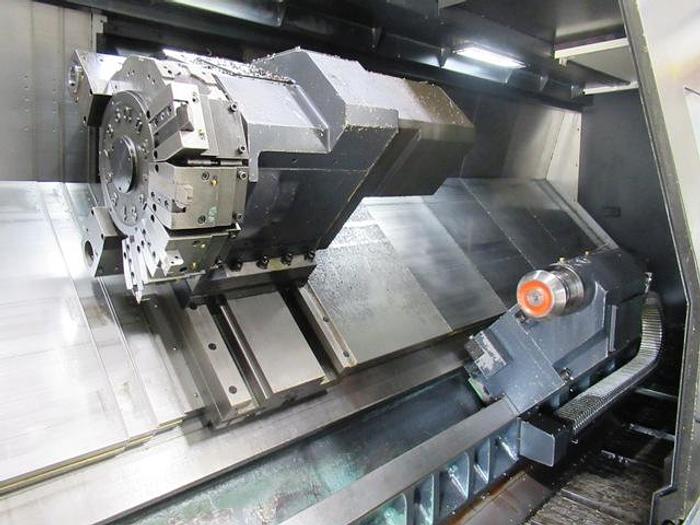

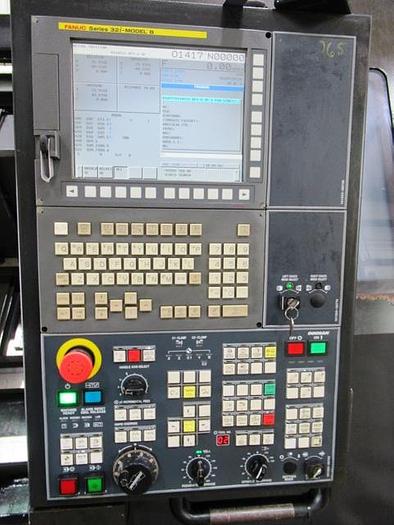

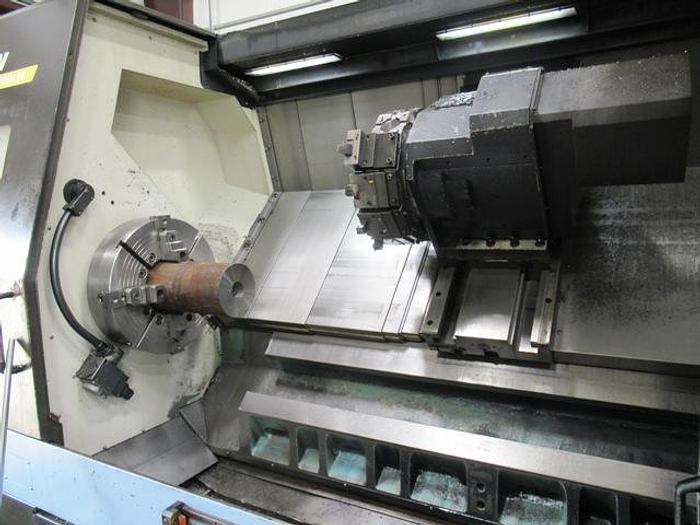

Live Milling, Fanuc 32i-Model B CNC Control, Manual 24" 4-Jaw Chuck, RIP Steady Rest 125 (0-1-25"), (3) Live Tools
Specifications
| Manufacturer | Doosan |
| Model | Puma 700LM |
| Year | 2014 |
| Condition | Used |
| Stock Number | 22290 |
| X-axis travels | 24" |
| Z-axis travels | 120" |
| Rapid traverse (x/z) | 472/393 IPM |
| Max turning diameter | 35.4" |
| Max turning length | 120" |
| Bar capacity | 6.5" |
| Max. distance between centers | 122" |
| Max. swing | 40.58" |
| Spindle nose/bore | A1-15"/7.12 |
| Spindle speeds | to 1,500 RPM |
| Spindle motor | 60/50 HP |
| Rotary tool speed | to 3,000 RPM |
| Rotary tool motor | 15 HP |
| Tailstock/quill diameter | 6.3"/MT #5 |
| Tailstock quill travel | 5.9" |
| Machine dimensions (l x w x h) | 336" x 109" x 102" |
| Machine weight | 48,500 Lbs. |
