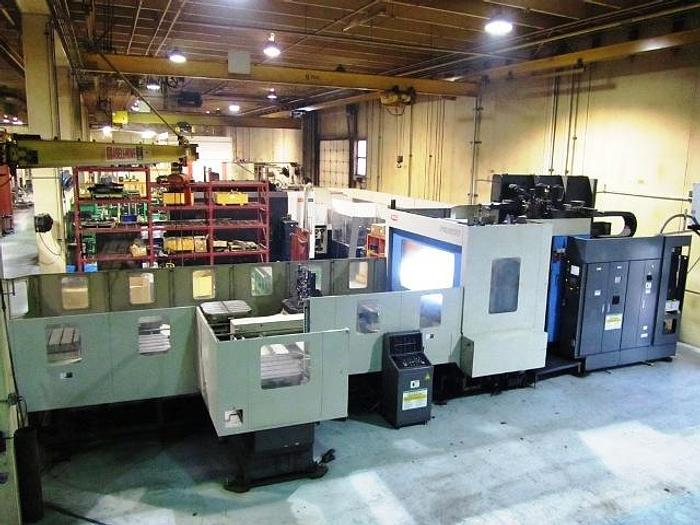

2006 TOYODA FA800 CNC Horizontal Machining Center with APC
No longer available
2006 TOYODA FA800 CNC Horizontal Machining Center with APC
Location:United States
Description

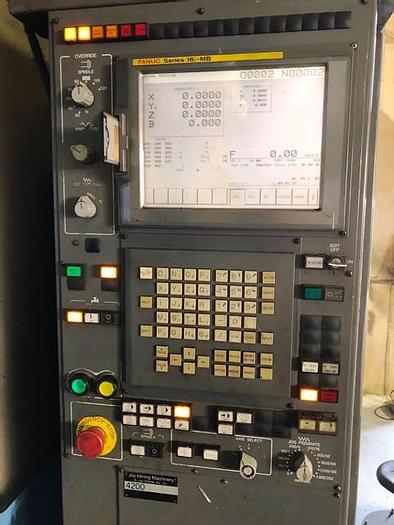

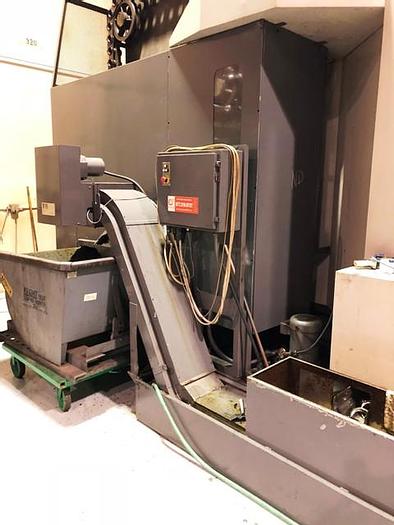

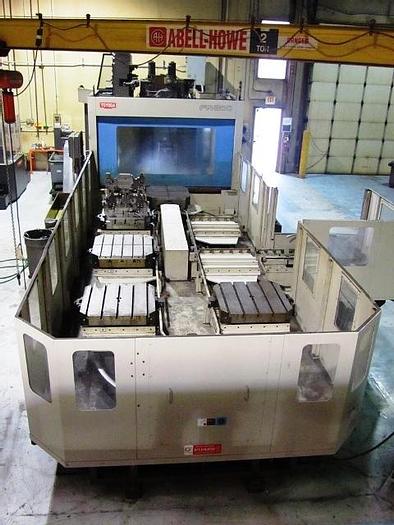

Cell Controller | Factory 8 - Pallet Changer | High Pressure Coolant Thru Spindle System | Chip Conveyor | Fanuc 161m CNC Control
Specifications
| Manufacturer | TOYODA |
| Model | FA800 8-APC |
| Year | 2006 |
| Condition | Used |
| Serial Number | NS1114 |
| Stock Number | 22200 |
| Maximum Work Envelope | 51.2" |
| Table Load Capacity | 5,500 lbs |
| X-Axis Travel | 51.3" |
| Y-Axis Travel | 45.2" |
| Z-Axis Travel | 45.2" |
| Table Indexing | 1 Degree |
| Main Motor | 60 / 50 HP AC |
| Spindle Taper | CAT #50 |
| Spindle Speeds | 6,000 RPM Geared |
| Number of Ranges | 2 |

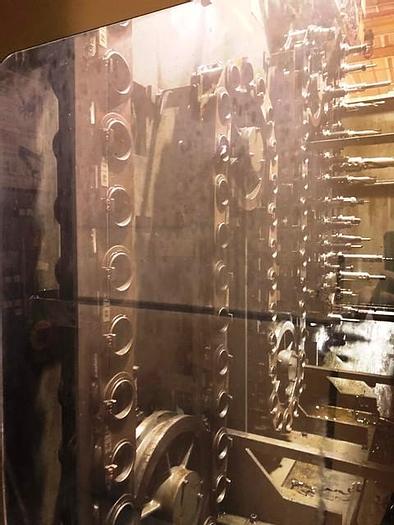

| ATC | 120 |
| Rapid Traverse X, Y, Z | 709 IPM |
| Maximum Tool Weight | 77 lbs |
| Approx. Weight | 48,000 lbs |
| Pallet Size | 315" x 31.5" |
| Number of Pallet Stateions | 8 |
