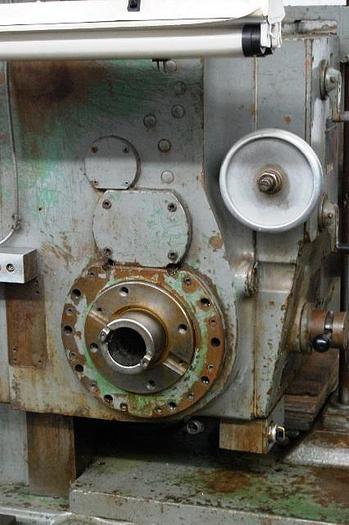

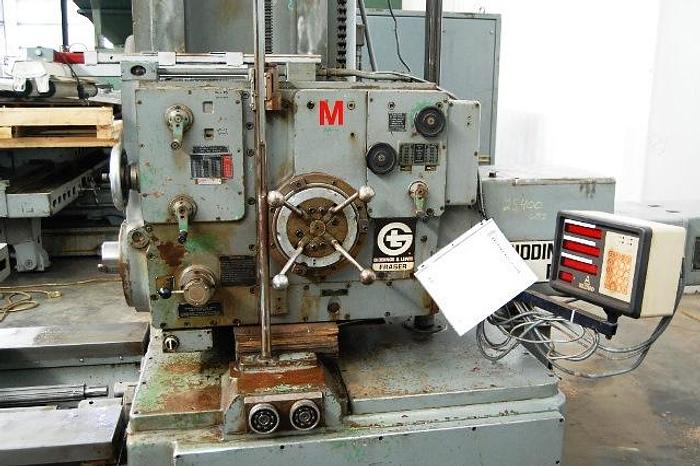

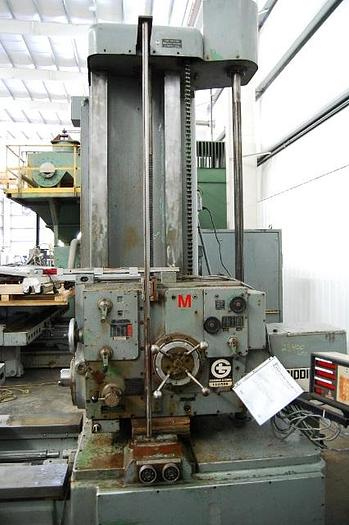

1969 Giddings & Lewis 4" Manual Table Type Horizontal Boring Mill
1969 Giddings & Lewis 4" Manual Table Type Horizontal Boring Mill
Contact us for price
Location:York, PA
or
Call 1 704-821-7370
Description
Pendant Control | Hard Replaceable Bed & Table Ways in Good Condition | Soft Vertical Ways in Good Condition with Floor Mounted Out Riggers
Specifications
| Manufacturer | Giddings & Lewis |
| Model | 70A-DP4-T Fraser |
| Year | 1969 |
| Condition | Used |
| Serial Number | 150-917 |
| Stock Number | 21790 |

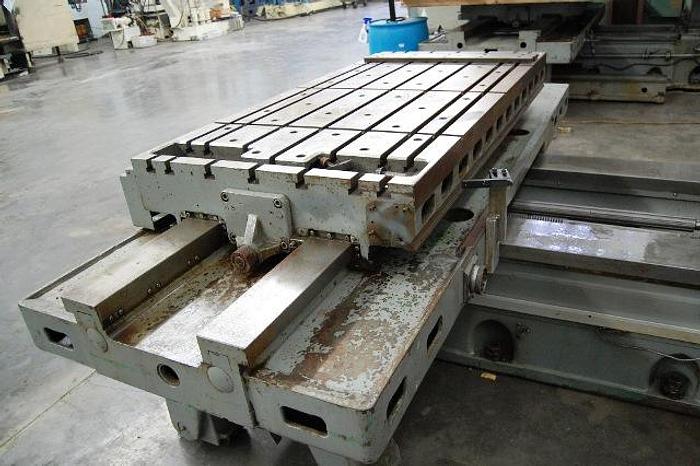

| Table Size | 36" x 74" * (7) 13/16" T-Slots & (3) 3/4" Key Slots |
| Spindle Diameter | 4" |
| Table Travel | Approx. 72" |
| Saddle Travel | Approx. 60" |
| Head Vertical Travel | 55" |
| Spindle Travel | 28" |
| Spindle Speeds | 10 to 1,300 RPM |
| Spindle Taper | #50 with Power Draw Bolt |
| Spindle Speeds | .002 to .250 TPR |
| Milling Feeds | .040 to 120 IPM |
| (2) Floor Mounted Table Outrigger Supports | 111" L x 14" W x 8-1/2" H |
| Hydraulic Pump Motor | 1-1/2 HP |
| Electrical Cabinet | 44" L x 15" W x 75" H |
| Main Motor | 20 HP 3 Phase, 50 Cycle, 440 V |
| Overall Machine Size (Table & Saddle Removed) | 200" L x 88" W |
| Fully Assembled | 128" H x 127" W |
