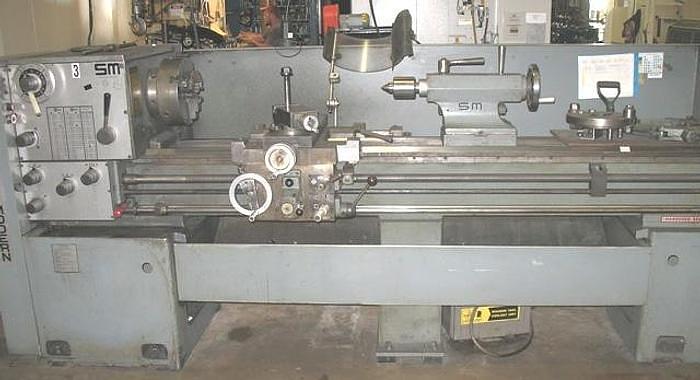

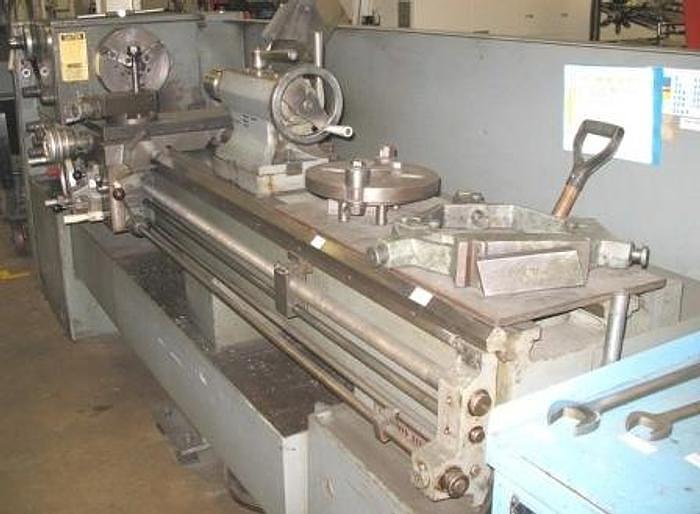

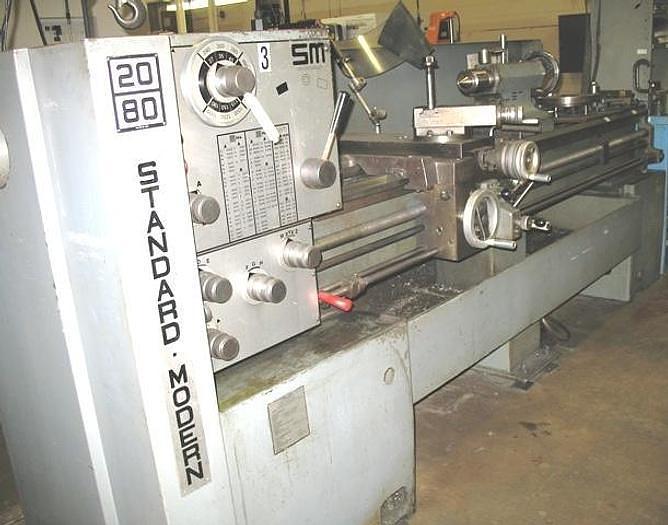

Standard Modern 20" x 80" Engine Lathe
Sold
Standard Modern 20" x 80" Engine Lathe
Location:Helena, AL
Description
12" 3-Jaw Chuck | 12" Face Plate | 10" Steady Rest | Live Center | Chip Pans | Inch / Metric Threading | Thread Dial | Taper Attachment
Specifications

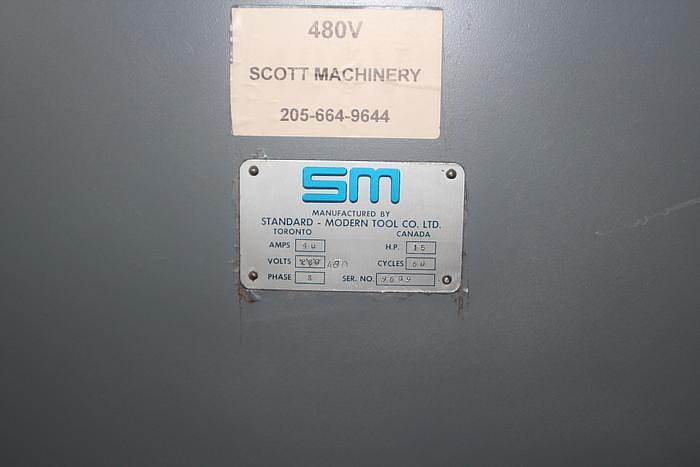

| Manufacturer | Standard Modern |
| Year | 1979 |
| Condition | Used |
| Serial Number | 9609 |
| Stock Number | 21900 |
| Swing over bed | 22" |
| Swing over bed and saddle ways | 20" |
| Swing over cross slide | 12" |
| Center distance | 80" |
| Main drive motor | 15 HP |
| Bar capacity | 3" |
| Spindle speeds (18) | 27-1600 RPM |
| Spindle nose - camlock | D1-8" |
| Through hole in spindle | 3.06" |

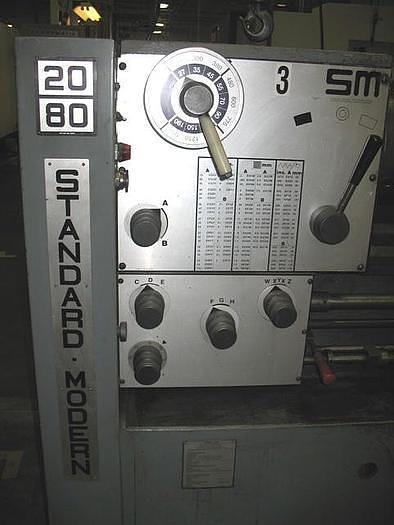

| Feed and thread selections | 66 |
| Inch feed range | .0015 - .105 IPR |
| Inch thread range | 2 to 127 TPI |
| Metric feed range | .04 to 2.67 MM/REV |
| Metric lead range | .2 to 14 MM |
| Handwheel | One Revolution 1" |
| Half nuts | Double |
| High speed treading to | 800 RPM |
| Repeatability of auto carriage stop | +.005" |
| Feed torque control | Variable |
| Carriage length on bed | 21" |
| Carriage bridge width | 10" |
| Cross slide length | 24" |
| Cross slide travel | 12" |
| Compound travel | 5" |
| Direct reading dial graduation | .001" |
| Quill diameter | 2.94" |
| Quill travel | 8" |
| Morse taper | #5 MT |
| Offset | +.75" |
| Bed width | 14" |
| Bed depth | 12-1/2" |
| Bed length | 124" |
| Base length | 134" |
| Base width | 30" |
| Approximate dimensions | 11' LR x 4' FB x 4'8" H |

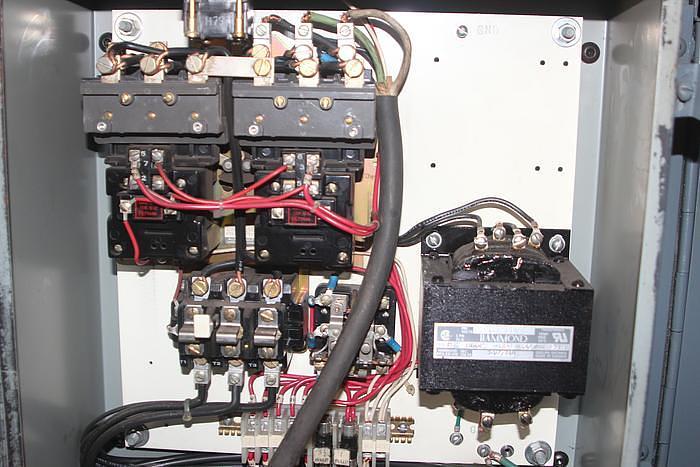

| Electrics | 220 Volts, 3 PH, 60 CYC |
