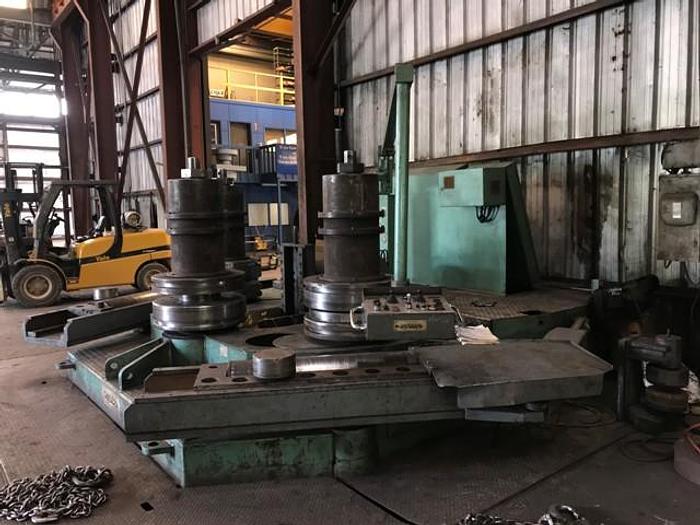

1998 Roundo Hydraulic Angle Bending Roll
Sold
1998 Roundo Hydraulic Angle Bending Roll
Location:Philadelphia, PA
Description

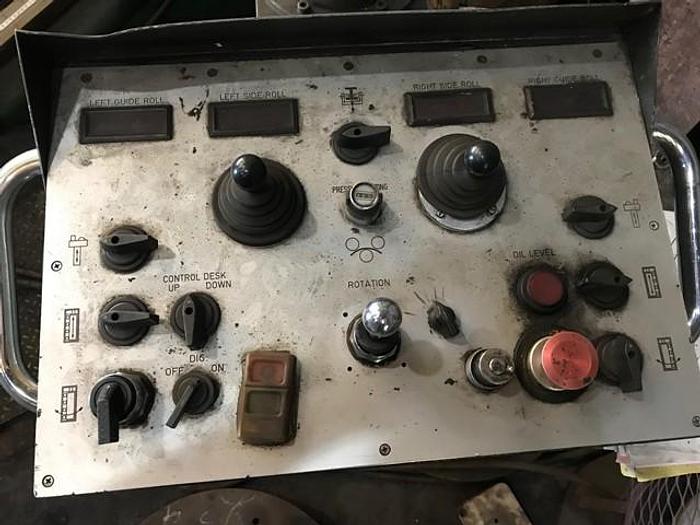

Pendant Mounted Controls | Universal Rolls for Bending Angle | Bar | I & U Beams | Independent Hydraulic Adjustable Rolls | Hydraulic Controlled Guide Rolls with Automatic Angle Adjustment | Double Radius | Hardway Attachment | Square & Rectangular 12"-20" | Comes with Standard set of Tubing Heads | In Plant Under Power | Factory Tooling
Specifications
| Manufacturer | Roundo |
| Model | R-13-S |
| Year | 1998 |
| Condition | Used |
| Serial Number | 986664 |
| Stock Number | 22190 |
| Angles Let Out | 8" x 8" x 1-1/4" |
| Angles Leg In | 8" x 8" x 1-1/4" |
| Schedule 40 Pipe | 20" to 600" Diameter |
| I-Beam | W16 x 100" to 1,300" Diameter |
| Diameter of Standard Bending Rolls | 31.5" |
| Diameter of Roll Shafts | 14-1/8" |
| Main Drive Motor | 105 HP |
| Approx. Shipping Weight | 96,800 lbs |
