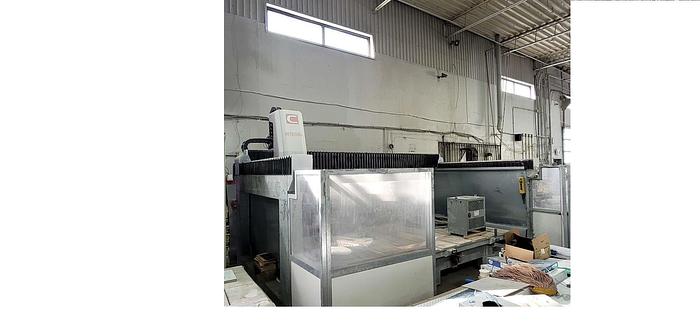

2015 Cobalm Integra 5-Axis CNC Stone Bridge Saw
Sold
2015 Cobalm Integra 5-Axis CNC Stone Bridge Saw
Canada
Description

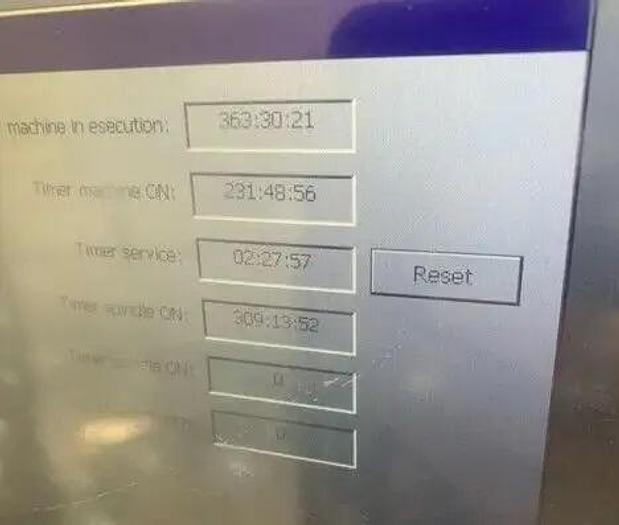

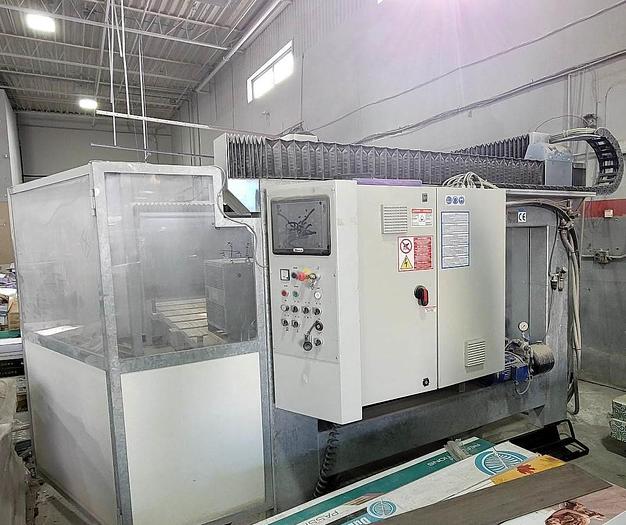

Cutting Rotation & Tilt | Windows Based Touchscreen Control Panel | USB & Internet Port | Windows CE with Programmable CAD | Manual, Semi-Automatic, and Automatic on all Axes | Electric Spindle Disc Motor | Used for Marble, Granite, & Natural Stone Processing | Low Hours: Approx. 363 TOTAL
Specifications
| Manufacturer | Cobalm |
| Model | Integra |
| Year | 2015 |
| Condition | Used |
| Stock Number | 22425 |
| Saw Blade: | 5,000 RPM |
| Motor: | 15 HP |
| X-Axis Travel: | 127.95" |
| Y-Axis Travel: | 74.8" |
| Z-Axis Travel: | 11.02" |
| C-Axis (Rotation): | 360° |
| A-Axis (Tilt): | 0-90° |
| Blade Diameter: | 15.74" - 24.6" |
| Feed Rate: | 472 in/min. |
| Approx. Dimensions: | 207" x 90.55" x 98.42" |
| Approx. Machine Weight: | 7,606 lbs. |
