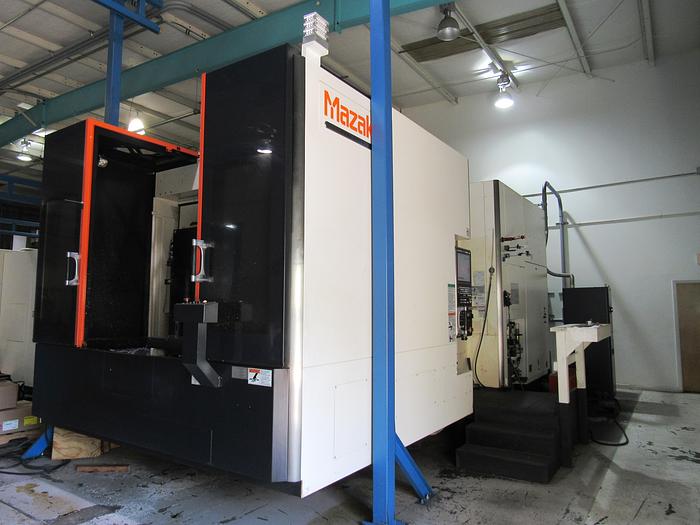

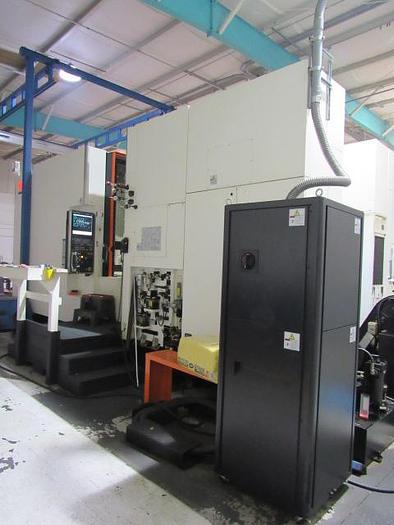

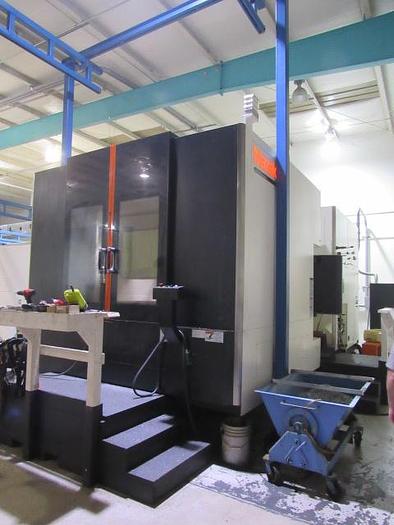

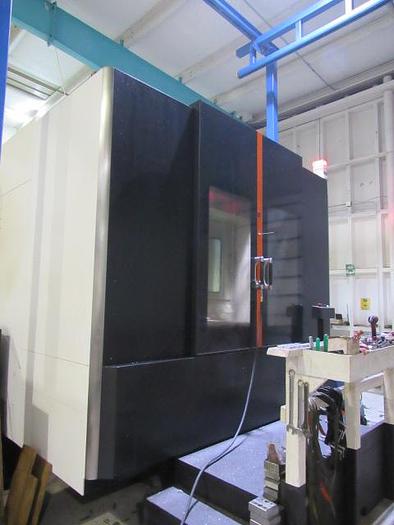

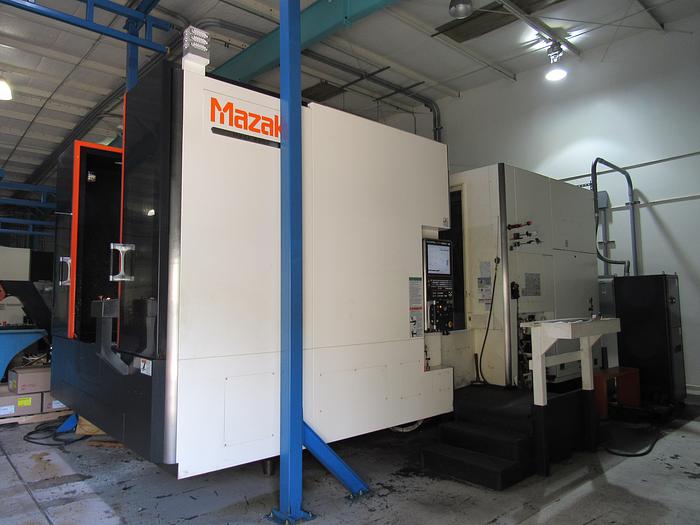

2012 Mazak Mega 8800 4-Axis CNC Horizontal Machining Center

Sold

2012 Mazak Mega 8800 4-Axis CNC Horizontal Machining Center

Ocala, FL

Description

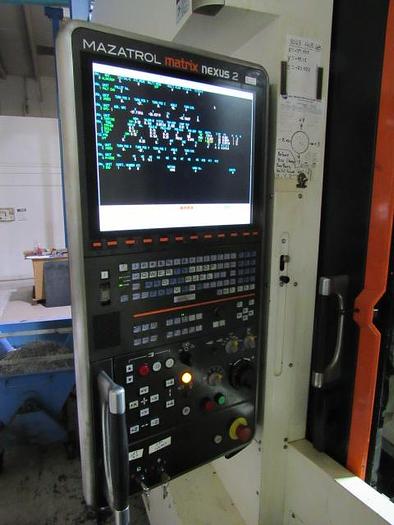

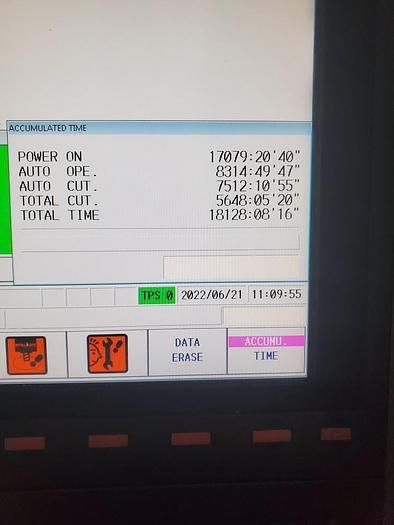

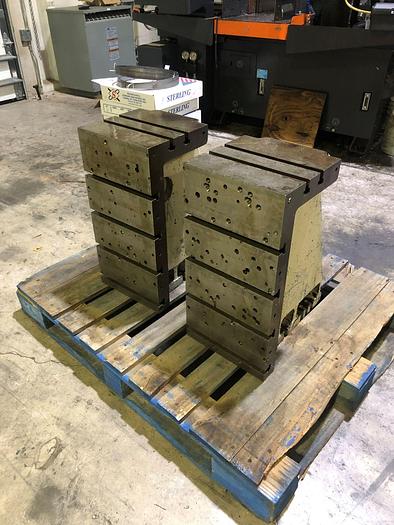

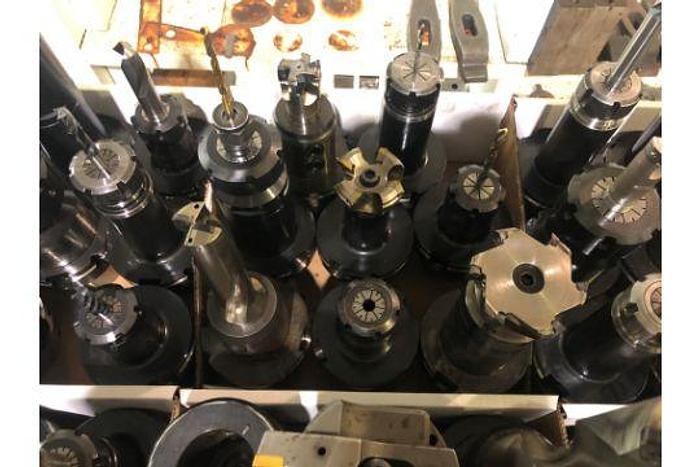

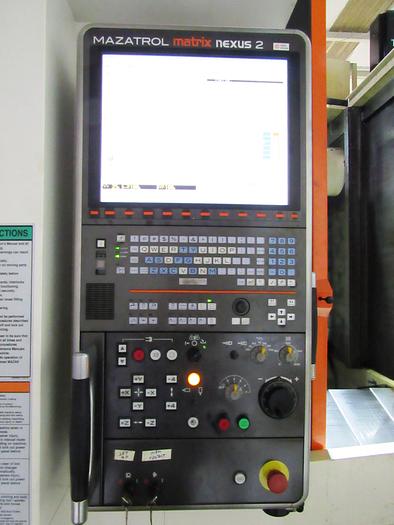

80 Position ATC (Accepts HSK100 & CAT50 Tool Holders) | NEW CAT50 Spindle (In Crate) | Push Button Pallet Control | Rear Discharge Chip Conveyor | Thru Spindle Coolant | Full 4th-Axis | Mazatrol Matrix Nexus 2 CNC Control | (72) HSK100 Tool Holders | (2) 12"W x 24"H Angle/Knee Plates | Approx. 6,000 Cutting Hours!


Machine was Purchased NEW from IMTS with Multiple Options Including:

  • 19" Color LCD
  • USB I/F (2-Port)
  • CARDBUS I/F (2-Slot)
  • LAN Port
  • Compact Flash Card I/F + USB I/F (1-Port)
  • EIA/ISO Code Input Function
  • B) Synchronized Tapping
  • B) G00 Slope Constant
  • B) MA2ACC-2D Software (Shape Compensation) (G61.1)
  • Inch/Metric Conversion
  • TBR & MMS in EIA/ISO Program Macro
  • Spindle Multi-Point Orient (M-Code/1Deg.)

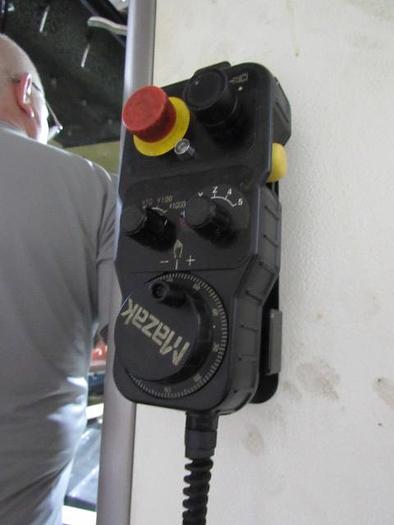

  • Manual Pulse Generator 1 Dial (Detachable)
  • Y-Axis Travel 47.2" (1200mm)
  • Auto Tool Length Measurement & Breakage Detection

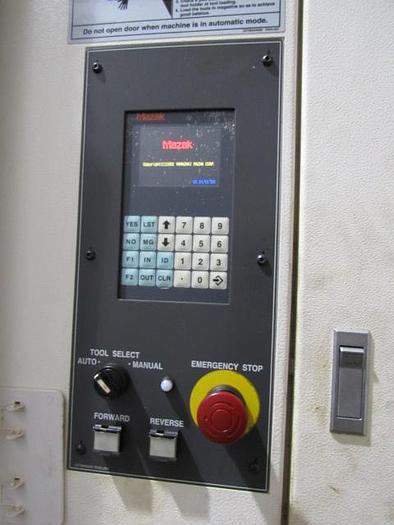

  • 80 Tool Chain Magazine
  • Prep for Visual Tool ID/Data
  • Management (EUCHNER)
  • Thru Mill-Spindle Coolant 8KG/113PSI with Prep for 1000PSI
  • Niagara Coolant
  • Coolers for Ball Screw (X, Y, Z-Axis)
  • Foundation Kit (Leveling Block)
  • Roller Guides
  • Ken Okuyama Design
  • Absolute Positioning System
  • Preparation for MMS-8 Optical Type OMP60
  • Spindle Chiller Unit
  • PMC (With New Cell-Controller) Preparation-#

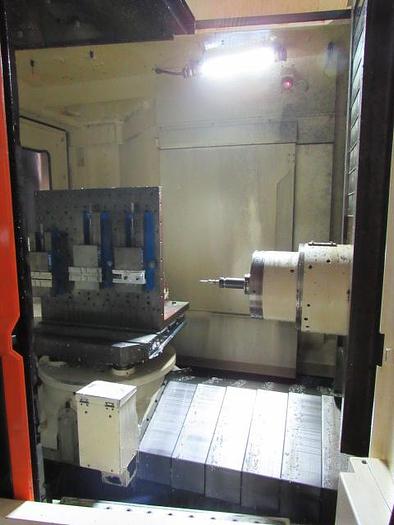

  • NC Rotary Table (360,000 Positions)
  • 2 Pallet Changer
  • 2 Pallet Changer Change to Location Bore T-Slot Pallets
  • Operator Door Interlock with Lock-Switch
  • Auto Power Off (Breaker Trip)
  • Power Transformer for North American Market
  • Electrical Control Box UL (Standard 240V)
  • Relocation Device
  • MT Connect Preparation (Software Upgrade to Support)

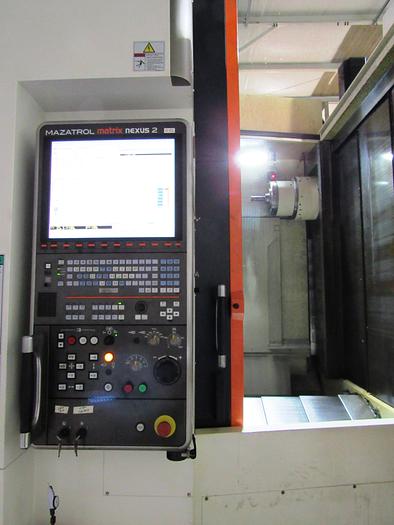

  • Windows 7 Operating System for Mazak Machine Control
  • Mist Collector
  • Large Chip Bucket (Swing Type)
  • Chip Conveyor Rear Disp(Hinge/For Steel)
  • Signal Tower (3 Colors, Lights, Square)
  • 4,000 RPM Super Hi-Torque Spindle
  • Dynamic Compensation 2,1 (Only NC-Table) J/N 90572
  • ER#75696 JPN Supplied Retrofit for Spindle Shaper-Type OP
  • Install Spindle Shaper-Type Operation

Specifications

ManufacturerMazak
ModelMEGA 8800
Year2012
ConditionUsed

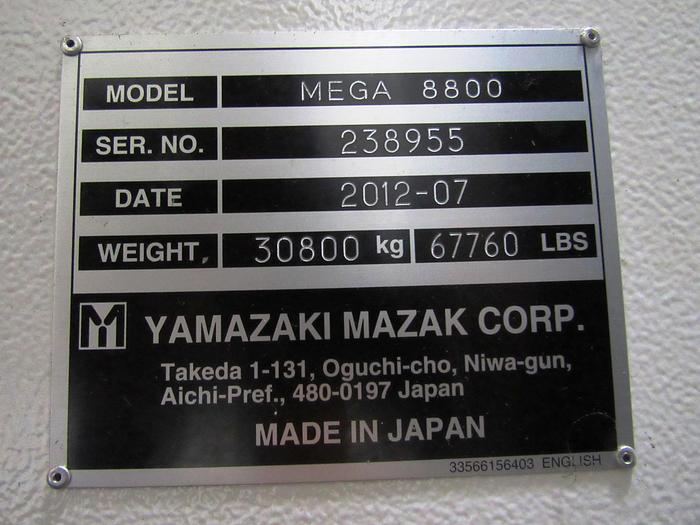

Serial Number238955
Stock Number22396
Pallet Size:32"
Spindle Type:HSK100 (COMES WITH NEW CAT50 SPINDLE, ATC MAGAZINE ACCEPTS BOTH)
Spindle Speeds:to 4,000 RPM
X-Axis Travel:55"
Y-Axis Travel:47.2"
Z-Axis Travel:52"
